Запчасти Case IH 1640 (9F-08) - STRAW SPREADER PULLEY SHIELD AND BELT GUIDE (19) - STRAW SPREADER & CHOPPER

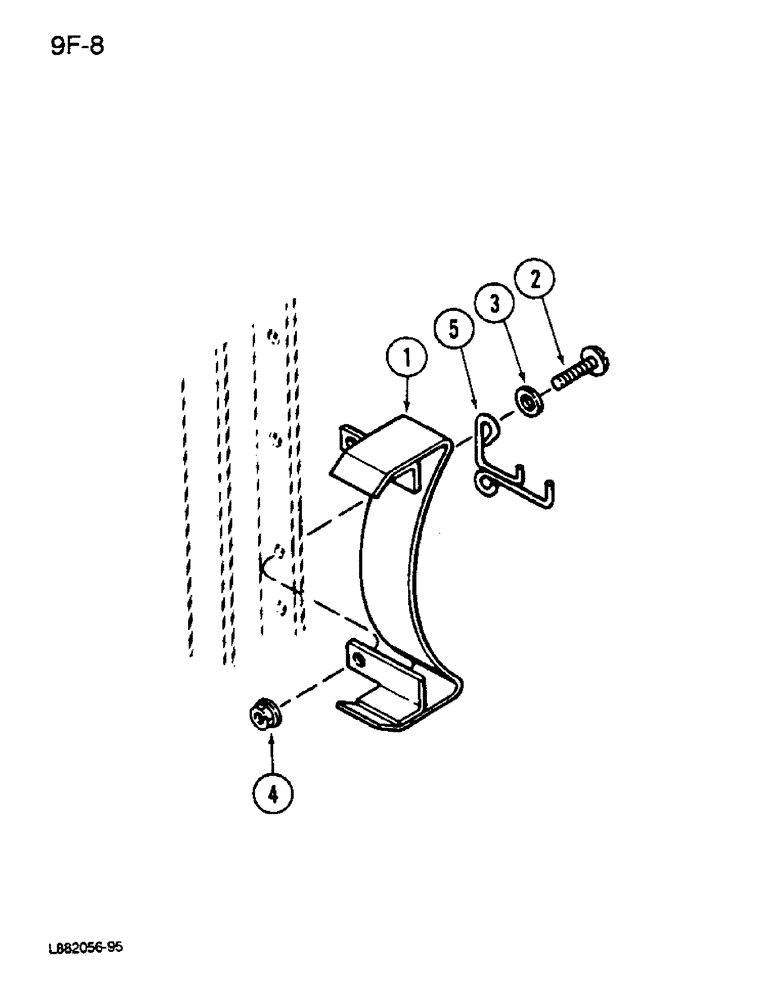

Схема запчастей Case IH 1640 - (9F-08) - STRAW SPREADER PULLEY SHIELD AND BELT GUIDE (19) - STRAW SPREADER & CHOPPER
2
5
4
3
1

Артикул

Название

Примечание

Количество

1

1324423C1

GUARD

SHIELD ASSEMBLY - straw spreader pulley

1шт.

2

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 x 1-1/4 inch

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

3шт.

5

1324419C1

GUIDE

ASSEMBLY - belt

1шт.

Выбрано товаров: 5
