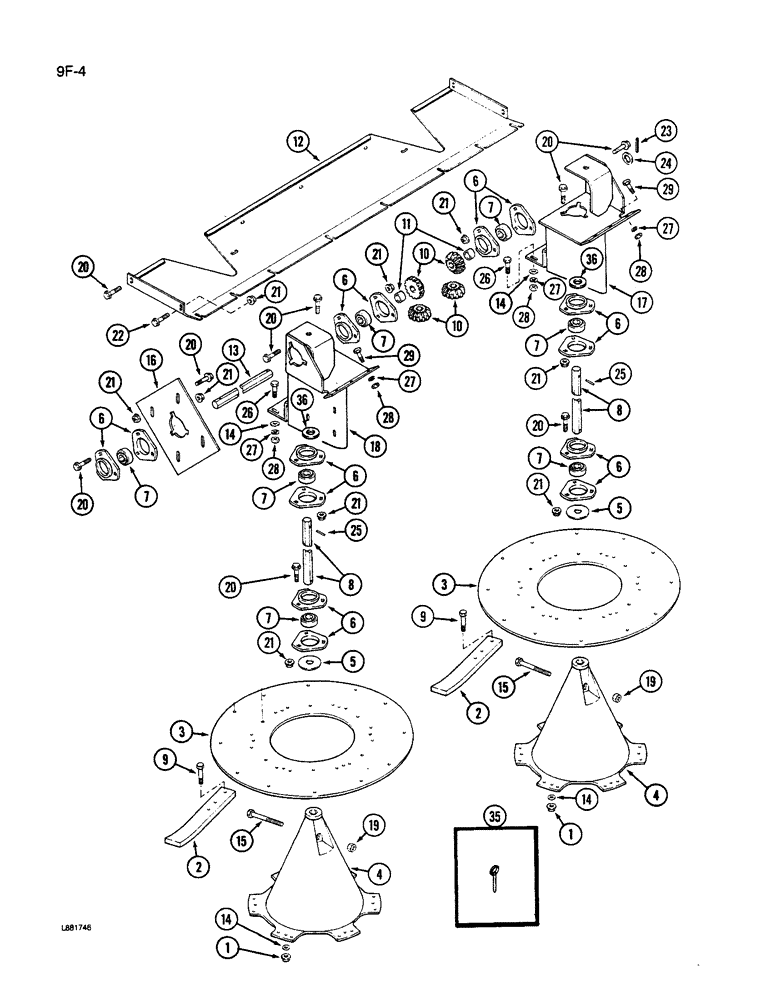

Запчасти Case IH 1640 (9F-04) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - strip

24шт.

2

194198C2

SKID/SHOE

STRIP - rubber

12шт.

3

1322230C1

RETAINER

- strip

2шт.

4

188218C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - straw spreader cone

2шт.

5

183041C1

WASHER

WASHER - support cone

2шт.

6

571424R1

FLANGE

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

192240C1

SHAFT

BAR - straw spreader (Shaft)

2шт.

9

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8 inch

24шт.

10

185410C1

GEAR-SET

GEAR SET - spreader drive (14 tooth)

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch tube (Cross bar)

2шт.

12

195138C5

SUPPORT

- dust shield

1шт.

13

192242C4

SHAFT

BAR - cross (Shaft)

1шт.

14

28588R1

WASHER

- 11/32 x 11/16 x3/64 inch

28шт.

15

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

16

186506C1

SUPPORT

BAR - braring

1шт.

17

1345024C1

SUPPORT

- spreader drive, left (Replaces 1317897C2)

1шт.

18

1345025C1

SUPPORT

- speader drive, right (Replaces 1317898C1)

1шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - prevailing torque lock, 3/8 inch

2шт.

20

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 x 3/4 inch

28шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

29шт.

22

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

23

138-2066

PIN,3/8" x 1 1/2", Coiled

1шт.

24

21742R1

WASHER

- 1-1/32 x 1-1/2 x 1/32 inch

7шт.

25

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch

8шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

1319303C1

PIN

- spreader retaining

2шт.

36

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.
