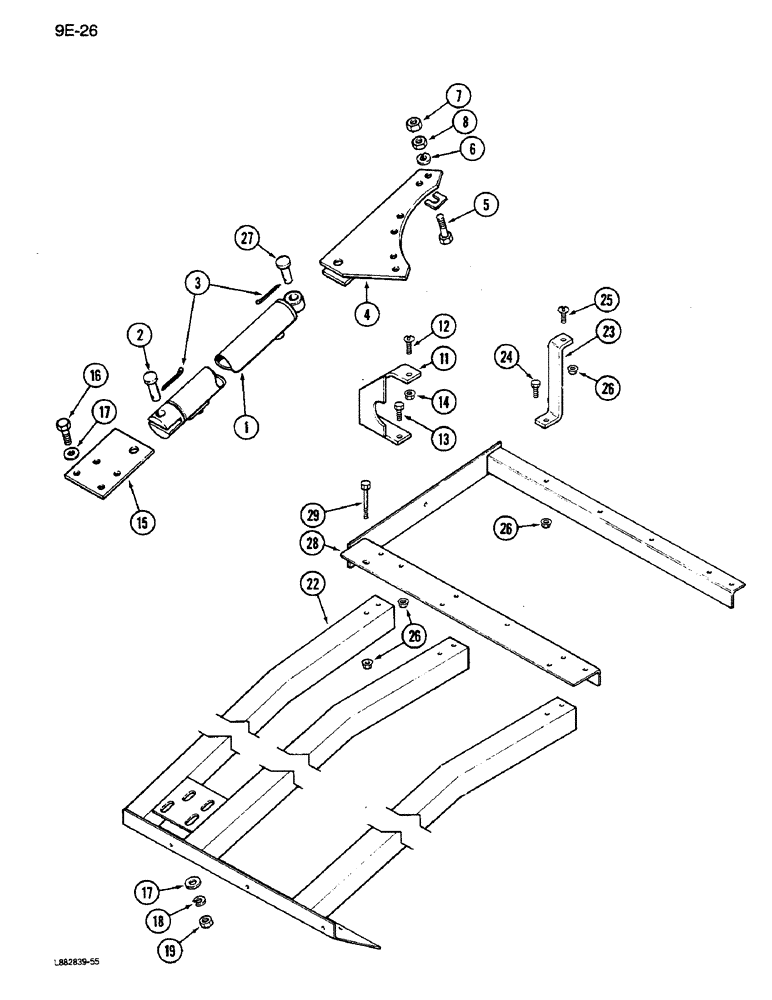

Запчасти Case IH 1640 (9E-26) - UNLOADER SWING CYLINDER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - unloader swing (See Figure 8-82)

1шт.

2

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 x 2-1/4 inch

1шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

1321541C1

SUPPORT

- unloader cylinder

1шт.

5

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, Grade 8

6шт.

6

366863C1

LOCK WASHER

WASHER - lock, 7/16 inch

6шт.

7

25524R1

NUT,7/16"-14, G8

- hex, 7/16 inch NC, Grade 8

6шт.

8

25960R1

JAM NUT,Jam, 7/16"-14, G8

- hex jam, 7/16 inch NC, Grade 8

6шт.

11

1321509C1

BRACKET

SUPPORT - top rear

1шт.

12

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

13

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

3шт.

15

1321508C1

PLATE

- cylinder anchor

1шт.

16

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

17

25710R1

WASHER

- hardened

8шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

22

1327507C1

SUPPORT

- unloader swing cylinder

1шт.

23

1322273C1

BRACKET

SUPPORT - top front

1шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 x 1 inch

1шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

27

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.

28

1327543C1

SUPPORT

- unloader tube

1шт.

29

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.
