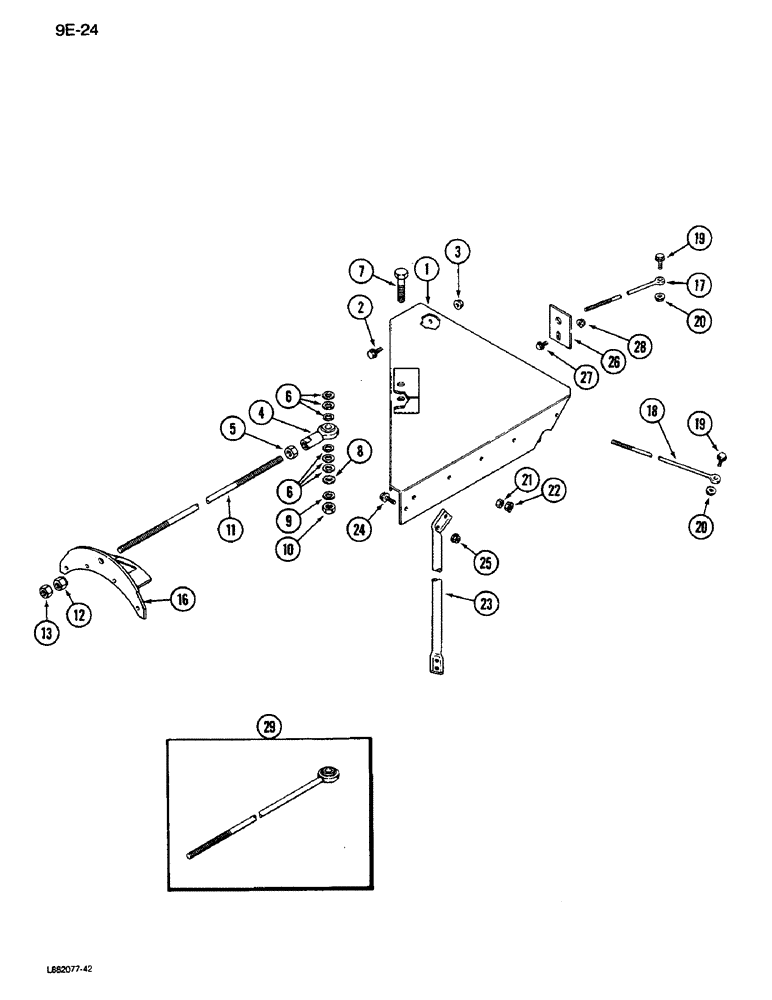

Запчасти Case IH 1640 (9E-24) - UNLOADER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

1327529C2

BRACKET

SUPPORT - rod anchor

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

9шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

9шт.

4

1327557C1

FITTING

END - anchor rod (If equipped)

1шт.

5

129-127

NUT,5/8"-18, G5

(If equipped) 5/8"-18, G5

1шт.

6

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

6шт.

7

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

8

25711R1

WASHER

- hardened

2шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

1327558C1

ROD

- unloader anchor support

1шт.

12

554480R1

WHEEL NUT

- hex special, 5/8 inch NF

1шт.

13

129-127

NUT,5/8"-18, G5

1шт.

16

1317516C1

SUPPORT TUBE

SUPPORT - anchor support rod

1шт.

17

193625C1

ROD

- unloader front lower

2шт.

18

1979494C1

ROD

- unloader front lower (Replaces 193626C1)

1шт.

19

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

1шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

22

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

1шт.

23

1338378C1

ROD

BRACE - unloader rear (Replaces 1327539C2)

1шт.

24

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

4шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock

4шт.

26

186691C1

PLATE

SEAL - support rod

3шт.

27

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

3шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

3шт.

29

1979616C2

ROD

- unloader anchor support (If equipped)

1шт.
