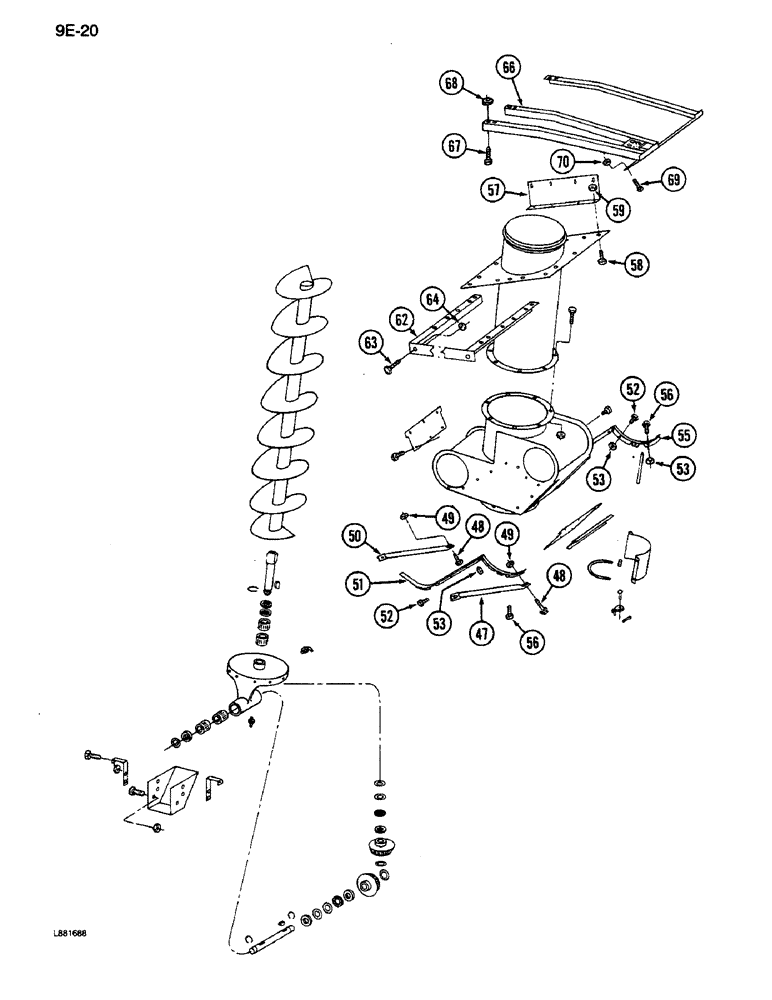

Запчасти Case IH 1640 (9E-20) - LOWER GRAIN TANK UNLOADER, (CONT) (17) - GRAIN TANK & UNLOADER

47

192848C1

ROD

SUPPORT - rear, housing

1шт.

48

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

50

192847C1

ROD

SUPPORT - front, housing

1шт.

51

192828C1

SUPPORT

- housing, left

1шт.

52

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

20шт.

53

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

22шт.

55

192829C1

SUPPORT

- housing, right

1шт.

56

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

57

191189C1

SUPPORT

BRACKET - support

1шт.

58

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

8шт.

59

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

62

1338393C1

ANGLE

SUPPORT - tube (Replaces 1327543C1)

1шт.

63

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

3шт.

64

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

66

1338388C1

SUPPORT

- unloader cylinder (Replaces 1327507C1)

1шт.

67

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

68

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

69

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

7шт.

70

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.
