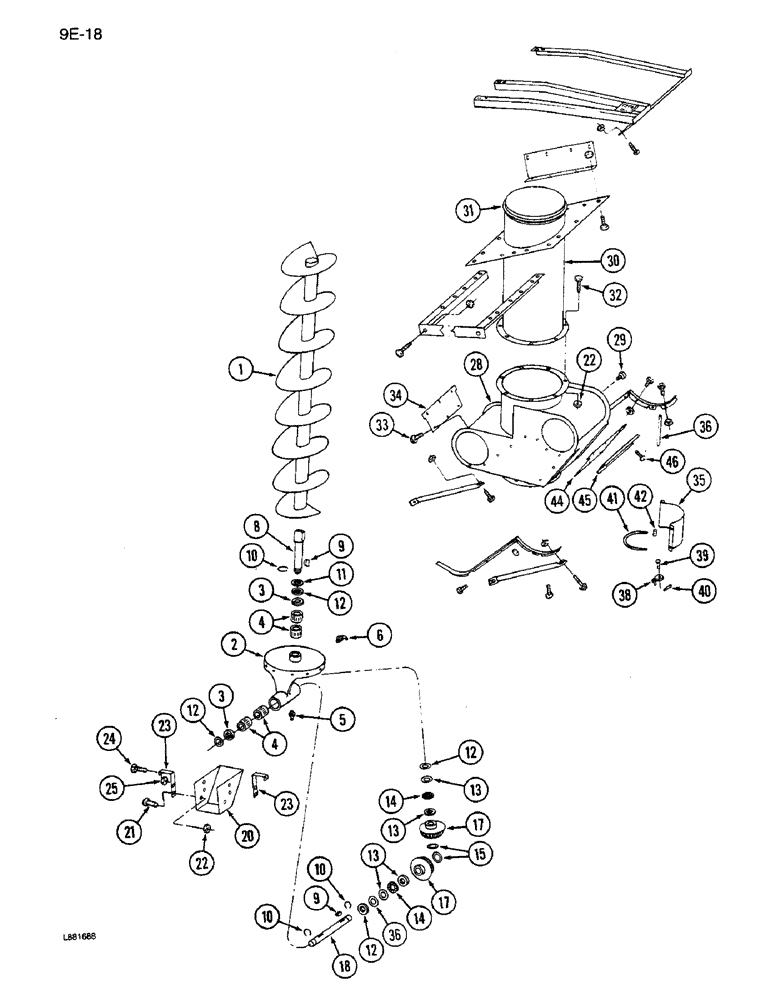

Запчасти Case IH 1640 (9E-18) - LOWER GRAIN TANK UNLOADER (17) - GRAIN TANK & UNLOADER

1

192835C1

AUGER

- unloader, vertical

1шт.

2

1327976C91

HOUSING

ASSEMBLY - drive, auger, Includes: Ref. 3 and 4

1шт.

3

157724C91

OIL SEAL

- oil, bearing

2шт.

4

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING - needle

4шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

6

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - 45 degree lube, 1/4 inch taper drive

1шт.

8

1327739C1

SHAFT

- auger, upper

1шт.

9

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

3шт.

10

A21619

CIRCLIP

RING - snap, shaft

3шт.

11

183490C1

WASHER

WASHER - shaft, upper

1шт.

12

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- shaft

5шт.

13

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

- flat, 1-13/32 x 2 x 3/32 inch

1шт.

14

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust

2шт.

15

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

- flat, 1-13/32 x 2 x 1/32 inch

1шт.

17

186517C1

GEAR-SET

GEAR SET - augcr (Set of 2)

1шт.

18

1327738C2

SHAFT

- horizontal, unloader

1шт.

20

186137C2

SUPPORT

SHIELD - drive gear

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - hex flange lock, 5/16 NC x 1/2 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

29шт.

23

186138C1

SUPPORT

- shield

2шт.

24

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange lock, 3/8 NC x 1-1/2 inch

2шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

7шт.

28

192475C3

HOUSING

- lower, unloader

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

37шт.

30

1338394C1

TUBE

- auger, vertical (Replaces 192830C92), Includes: Ref. 31

1шт.

31

178134C2

RING

- upper, tube

1шт.

32

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.

34

191087C1

PLATE

COVER - front, bottom

1шт.

35

1970539C1

FLAP

DOOR - auger, lower (Replaces 195329C1)

1шт.

36

393069R1

PIN,6.35mm OD x 147.3mm L

ROD - pivot, door

1шт.

38

155909C1

LATCH

- door

1шт.

39

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - clevis, 1/4 x 1-1/2 inch

1шт.

40

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

41

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT - U Type, door

1шт.

42

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4 inch NC

2шт.

44

191110C1

COVER

COVER - rear, bottom

1шт.

45

192834C1

CHANNEL

- support

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

2шт.
