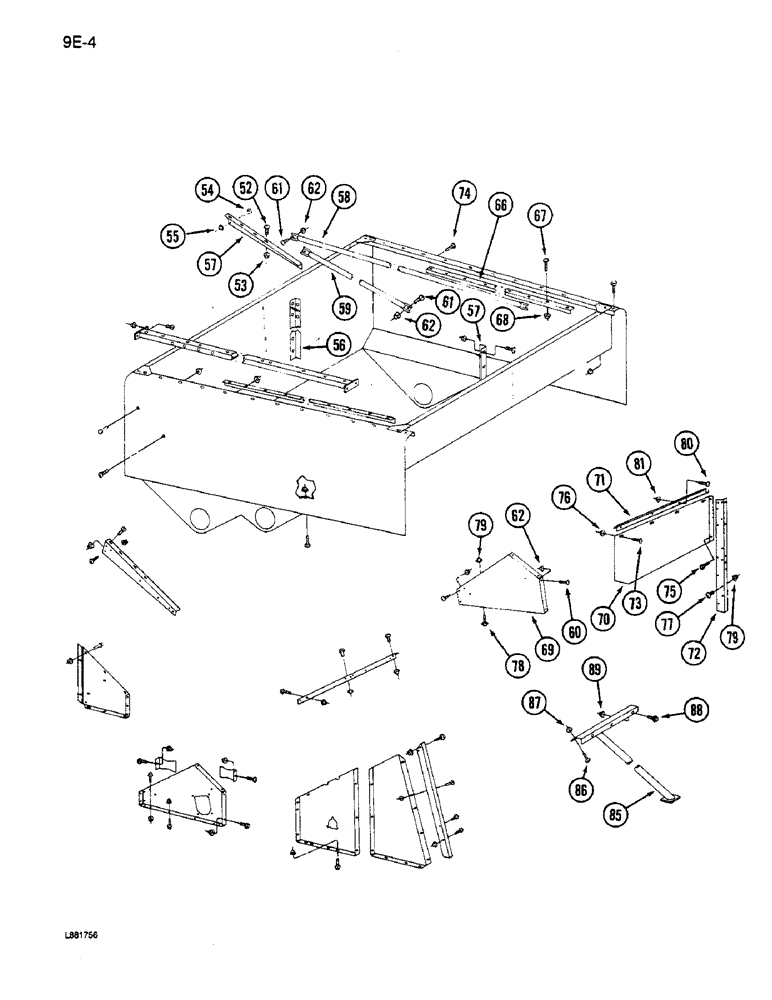

Запчасти Case IH 1640 (9E-04) - GRAIN TANK, (CONT) (17) - GRAIN TANK & UNLOADER

51

192769C2

SUPPORT

- grain tank, right

1шт.

52

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

53

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

4шт.

54

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

55

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

56

188417C1

ANGLE

- grain tank, front

1шт.

57

1329777C1

SUPPORT

- grain tank, rear

1шт.

58

192767C2

STEM

ROD - grain tank

1шт.

59

188414C2

STEM

ROD - grain tank

1шт.

60

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

61

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

1шт.

62

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

66

195398C2

ANGLE

- grain tank, top right

1шт.

67

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted head, 5/16 NC x 3/4 inch

12шт.

68

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

12шт.

69

192772C2

SUPPORT

- grain tank, right center

1шт.

70

192474C1

SUPPORT

- grain tank, right

1шт.

71

192774C1

SUPPORT

- grain tank, rear bottom

1шт.

72

181392C1

SUPPORT

- grain tank, rear right

1шт.

73

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head 5/16 NC x 1/2 inch

6шт.

74

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

75

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

16шт.

76

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

77

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

78

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

79

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

80

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

81

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

1шт.

85

186118C1

SUPPORT ASSY.

SUPPORT - grain tank rear

1шт.

86

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

5шт.

87

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

5шт.

88

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

2шт.

89

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

2шт.
