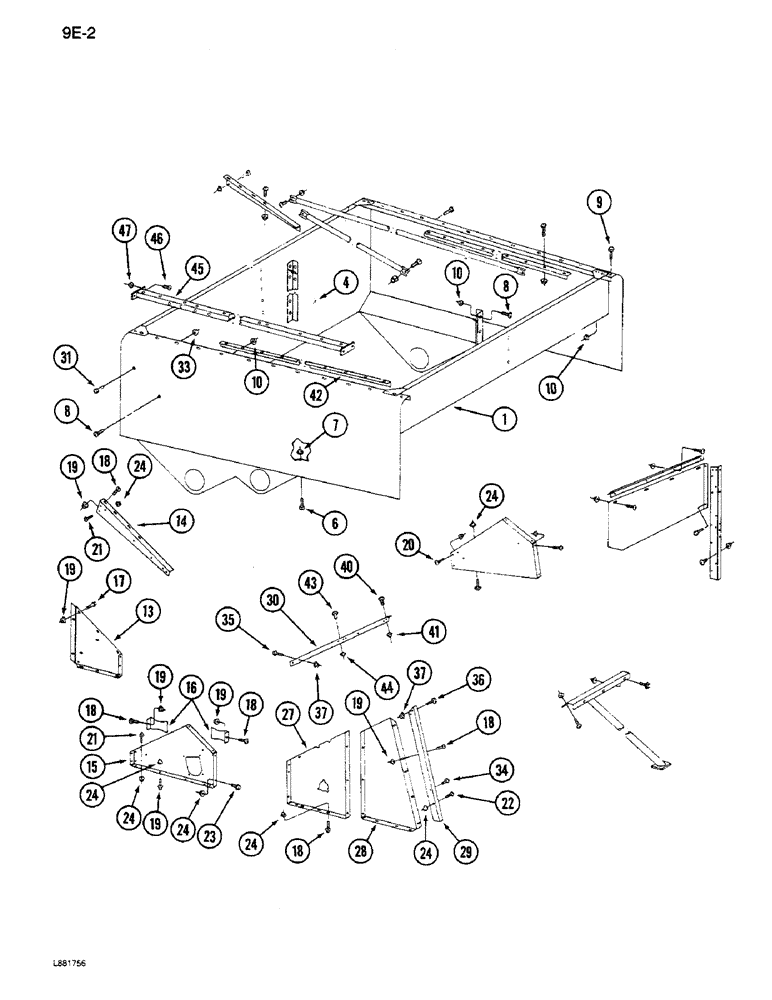

Запчасти Case IH 1640 (9E-02) - GRAIN TANK (17) - GRAIN TANK & UNLOADER

1

1321917C91

TANK

ASSEMBLY - grain, with decals

1шт.

4

134238R1

WASHER

- 11/32 x 1 x 3/64 inch

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

1шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

3шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

7шт.

13

192770C3

COVER

SUPPORT - grain tank, left front

1шт.

14

192768C2

SUPPORT

- grain tank, left

1шт.

15

192771C2

SUPPORT

- grain tank, center

1шт.

16

193531C1

SUPPORT

- filler

4шт.

17

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

3шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted head, 5/16 NC x 3/4 inch

1шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

20

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

2шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

27

193471C1

SUPPORT

- grain tank, rear

1шт.

28

192777C1

SUPPORT

- grain tank, rear

1шт.

29

192775C1

SUPPORT

- grain tank, rear

1шт.

30

192773C1

ANGLE

BRACKET - grain tank, rear bottom

1шт.

31

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

34

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

36

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

37

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

40

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

41

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

1шт.

42

195397C3

ANGLE

- tank top, left

1шт.

43

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

7шт.

44

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

7шт.

45

192855C1

SUPPORT

- grain tank

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head 3/8 NC x 3/4 inch

4шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.
