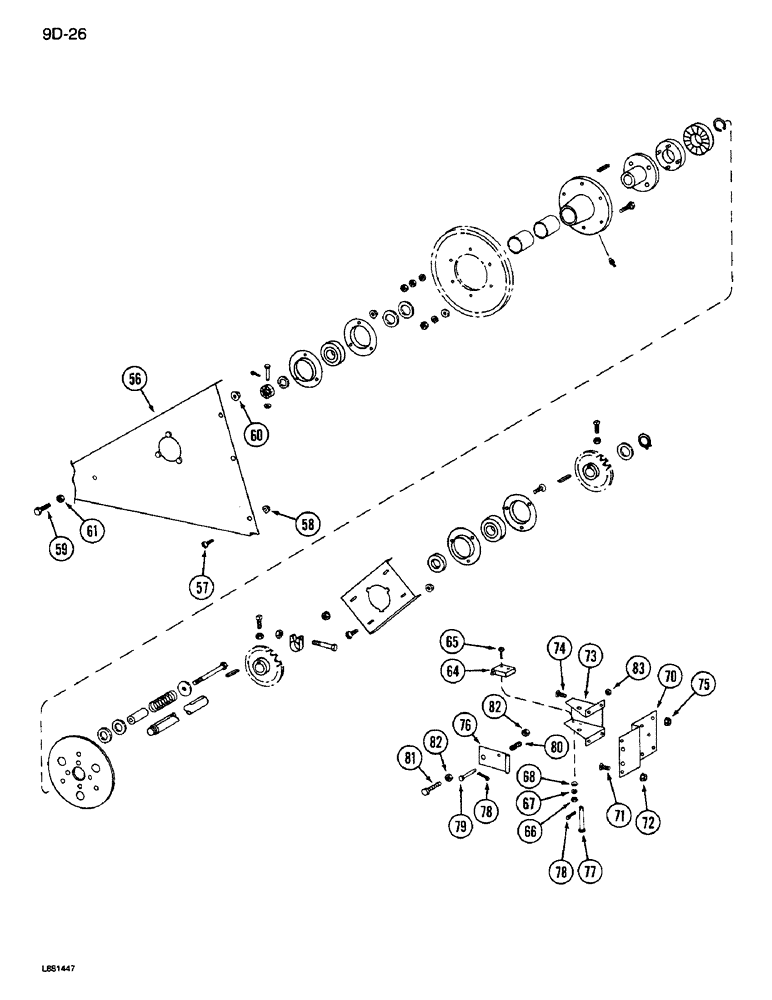

Запчасти Case IH 1640 (9D-26) - ELEVATOR DRIVE JACKSHAFT, (CONT) (16) - GRAIN ELEVATORS & AUGERS

56

1317435C1

SUPPORT

- inner, jackshaft

1шт.

57

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

58

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

59

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

1шт.

60

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex fiange lock, 3/8 inch NC

1шт.

61

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

64

574649R91

SWITCH

- alarm, elevator (If equipped)

1шт.

65

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

- Phillips pan head machine, No. 6 x 1 inch (If equipped)

2шт.

66

134530

NUT,Hex, #6 - 32

If equipped #6-32

2шт.

67

492-11006

LOCK WASHER,#6

Washer, Lock, , If equipped #6

2шт.

68

103337

WASHER,#6

If equipped #6

2шт.

70

185138C2

SUPPORT

- switch (If equipped)

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss, 3/8 NC x 3/4 inch (If equipped)

2шт.

72

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC (If equipped)

2шт.

73

167323C1

SUPPORT

- switch (If equipped)

1шт.

74

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 1/2 inch (If equipped)

4шт.

75

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC (If equipped)

4шт.

76

167324C1

HINGE

STRIP - switch (If equipped)

1шт.

77

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN - clevis, 1/4 x 2-1/2 inch (If equipped)

1шт.

78

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4" (If equipped)

2шт.

79

23099R1

HEADED PIN,5/16" x 3"

PIN - flat head, 5/16 x 3 inch (If equipped)

1шт.

80

M296

SPRING

- return, switch (If equipped)

1шт.

81

19765R1

SCREW

BOLT - weld, 3/8 NC x 1-3/4 inch (If equipped)

1шт.

82

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (If equipped) 3/8"-16, G5

2шт.

83

21870R1

WASHER

- flat, 17/64 x 3/4 x 3/64 inch (If equipped)

1шт.
