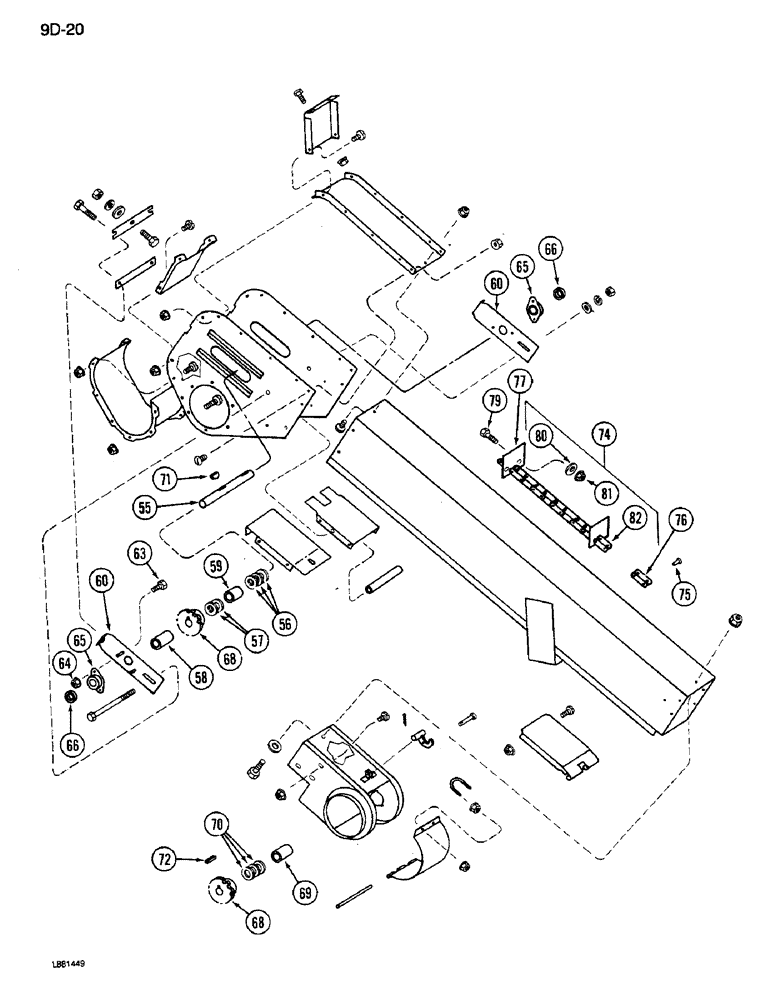

Запчасти Case IH 1640 (9D-20) - TAILINGS ELEVATOR, (CONT) (16) - GRAIN ELEVATORS & AUGERS

55

191785C1

SHAFT

- sprocket, head

1шт.

56

21789R1

WASHER

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

57

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

58

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket, LH 1" Pipe x 2 3/4"

1шт.

59

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Sprocket, RH 1" Pipe x 1 9/16"

1шт.

60

181364C1

SUPPORT

- shaft

2шт.

63

186056C1

BOLT

- support

4шт.

64

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

65

214490C91

BALL BEARING,25.4mm ID

BEARING - head shaft

2шт.

66

455102R21

COLLAR

ASSEMBLY - bearing lock

2шт.

68

168683C1

SPROCKET

- chain, conveyor

2шт.

69

21696R1

SPACER,1" Pipe x 1 3/8"

- sprocket, 1 x 1-3/4 inch

1шт.

70

22440R1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/32 inch

1шт.

71

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

72

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

74

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 75 - 82

1шт.

75

185315C1

RIVET

- tubular, 3/8 x 5/8 inch

1шт.

76

631254R91

DRAG LINK

LINK - connecting

1шт.

76

23442R1

PIN,2.36mm OD

- link

1шт.

76

631253R91

LINK

- plain

1шт.

76

23880R1

OFFSET LINK

LINK - offset

1шт.

77

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - conveyor (Rubber)

1шт.

77

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - conveyor (Steel)

1шт.

77

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

77

1303125C1

STEEL FLIGHT

FLIGHT - conveyor, steel

1шт.

79

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

80

28588R1

WASHER

- flat, 13/32 x 11/16 x 3/64 inch

2шт.

81

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

82

NSS

NOT SOLD SEPARAT

LINK - attaching (Rubber flight) (Order 1303123C91)

1шт.

82

150722C91

LINK

- attaching (Steel flight)

1шт.
