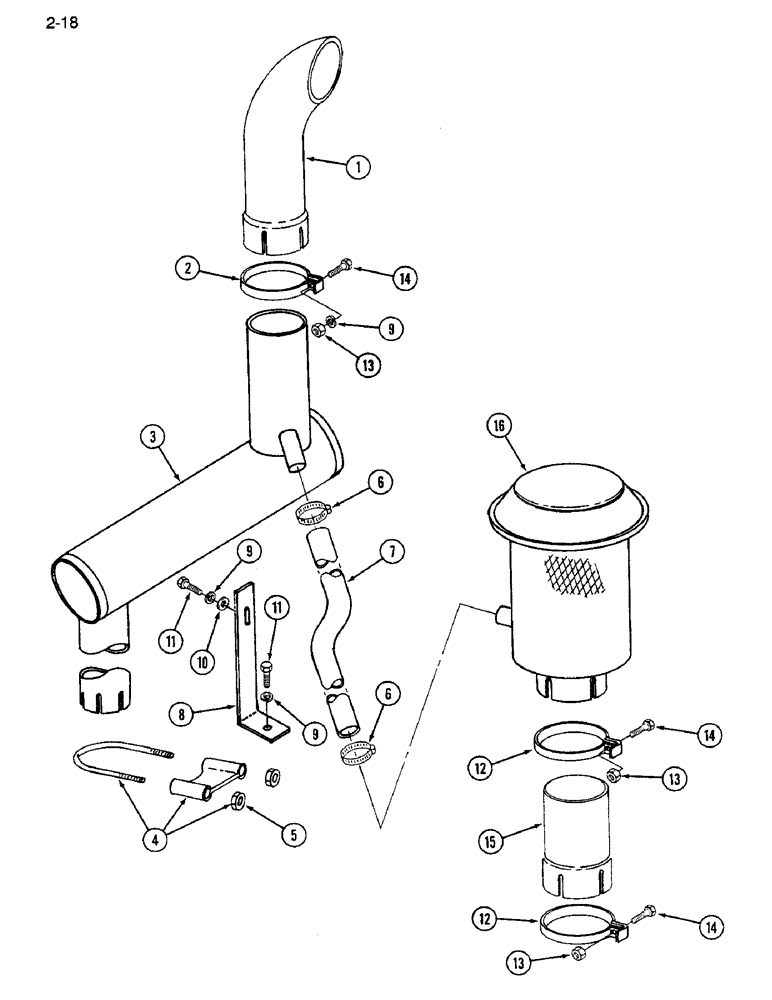

Запчасти Case IH 1640 (2-18) - EXHAUST MUFFLER AND PRECLEANER, D466 ENGINE (01) - ENGINE

1

397178R2

EXHAUST SYSTEM PIPE,76.2 mm OD

PIPE - exhaust elbow

1шт.

2

663432C1

CLAMP,69.85mm - 82.65mm

- exhaust pipe elbow

1шт.

3

1275825C1

MUFFLER

- exhaust

1шт.

4

68219C91

KIT

- muffler clamp, Includes: Ref. 5

1шт.

5

535993R1

NUT

- muffler clamp, hex, 3/8 inch NC

2шт.

6

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose, retaining

2шт.

7

NSS

NOT SOLD SEPARAT

HOSE - exhaust ejector, 19 inch (Order 407001R1, Serial Range: cut-length)

1шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

- rubber, 36 inch length

1шт.

8

1275792C1

BRACKET

SUPPORT - muffler

1шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

21403R1

WASHER

- 13/32 x 1 x 7/64 inch

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

650986C1

CLAMP,69.85mm - 82.55mm

- pre-cleaner and tube

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

15

1275835C1

AIR INTAKE TUBE,4.53" ID, 4.5" OD, 6.5" Length

TUBE - air intake extension

1шт.

16

130918C91

PRESCREENER ASSY.

PRECLEANER ASSEMBLY

1шт.
