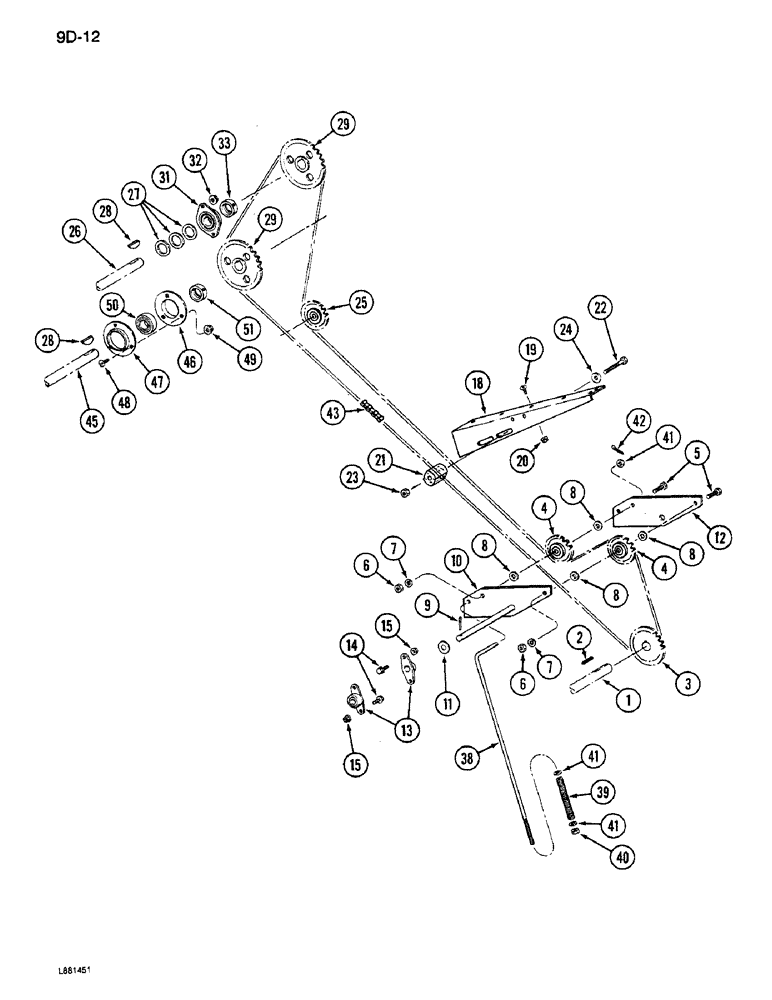

Запчасти Case IH 1640 (9D-12) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

- drive, elevator

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

ASSEMBLY - drive 25T

2шт.

4

631905R91

SPROCKET

- idler drive

2шт.

5

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

6

129-107

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-1/16 x 5/64 inch

4шт.

9

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

10

1345064C1

SUPPORT

- pivot (Replaces 1317671C1)

1шт.

11

21753R1

WASHER

- 25/32 x 1-1/2 x 3/64 inch

1шт.

12

1345066C1

PLATE

BAR - tightener (Replaces 1317670C1)

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSEMBLY - pivot (Replaces 382508R91)

2шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

18

1317476C2

HOUSING

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

23

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

1шт.

25

1319759C1

DRIVE SPROCKET

SPROCKET - idler

1шт.

26

1317429C1

SHAFT

- elevator head

1шт.

27

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 3/64 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

ASSEMBLY - headshaft

2шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING ASSEMBLY - headshaft

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

33

557995R11

COLLAR

ASSEMBLY - bearing

2шт.

38

1345005C1

BOLT,3/8" - 16 x 815mm

ROD - tightener, chain (Replaces 1317666C2)

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

41

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

42

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 261 links of No. 50 chain, one 1315D connecting link and two 1315Doffset links.

1шт.

45

REF

INSTRUCTION

AUGER - delivery (See Figure 9D-2)

1шт.

46

670375R11

FLANGE

ASSEMBLY - bearing

1шт.

47

939461R1

FLANGE

- bearing

1шт.

48

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

3шт.

49

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

50

156010C92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING ASSEMBLY - auger

1шт.

51

557995R11

COLLAR

ASSEMBLY - bearing

1шт.
