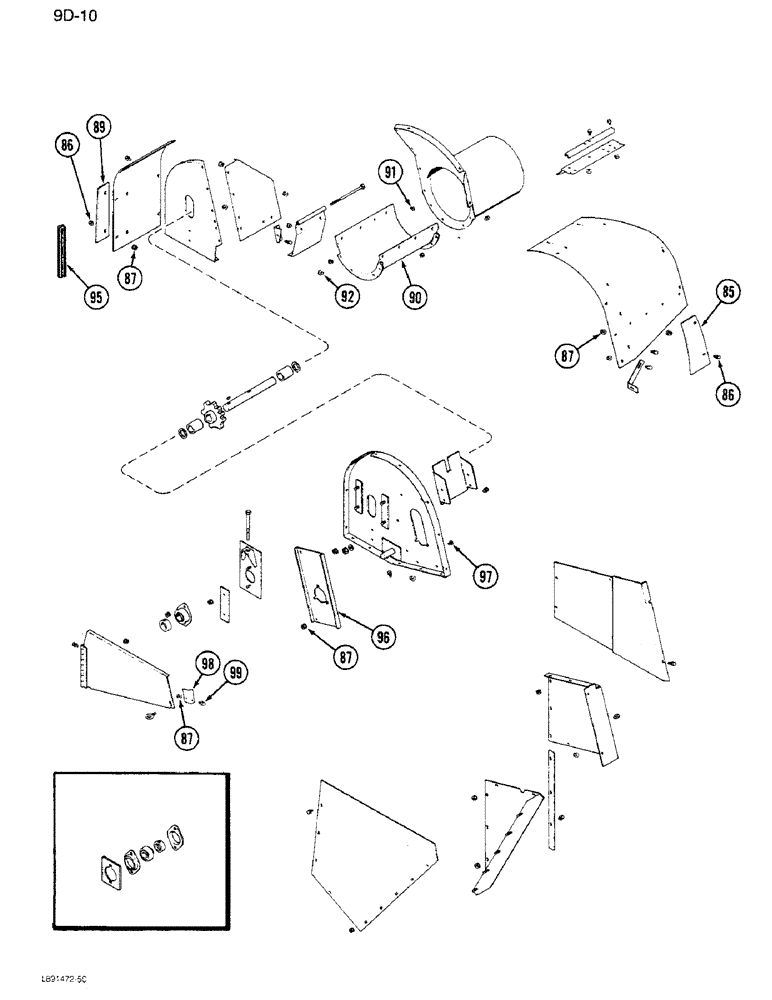

Запчасти Case IH 1640 (9D-10) - HORIZONTAL GRAIN ELEVATOR HEAD, (CONT) (16) - GRAIN ELEVATORS & AUGERS

87

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

31шт.

90

1321130C1

TROUGH

- auger

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

92

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

96

1321129C1

PLATE

- bearing, auger, right

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

98

1317792C2

ANGLE

BRACKET - shield

1шт.

99

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.
