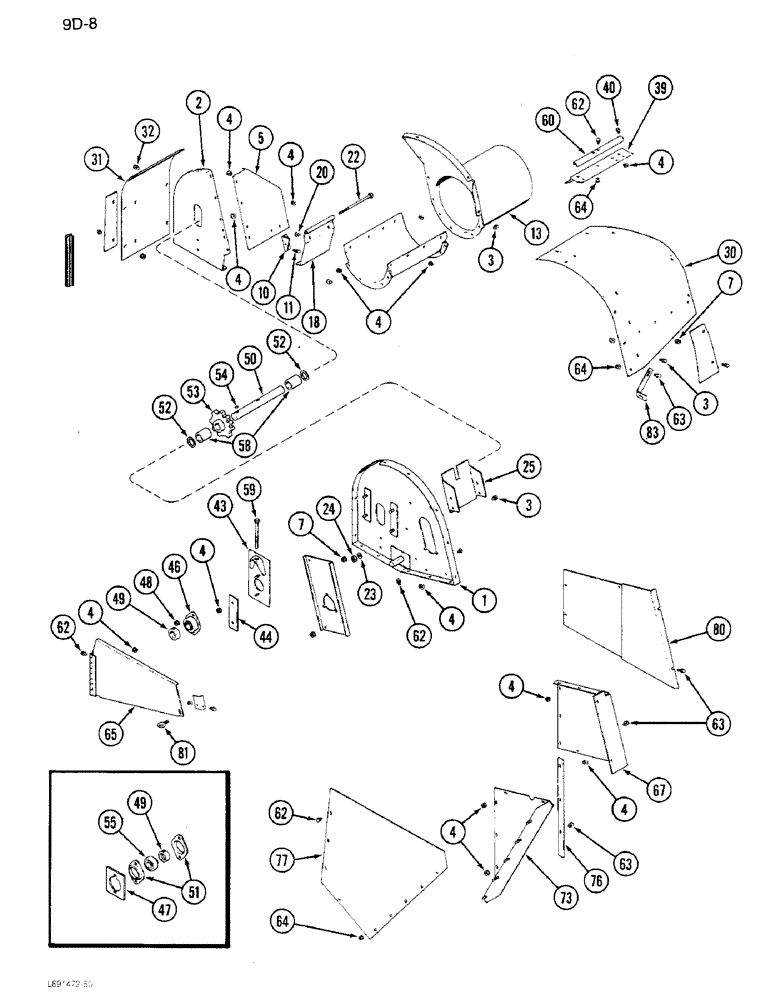

Запчасти Case IH 1640 (9D-08) - HORIZONTAL GRAIN ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

1

1321126C1

PLATE

SIDE - head, right

1шт.

2

1319901C1

SIDE PLATE

SIDE - head, left

1шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

25шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

5

1321139C1

PLATE

SUPPORT - adapter, left head

1шт.

10

1321553C1

BRACKET

ANGLE - support, cutoff end

1шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

13

1321277C1

SUPPORT

ASSEMBLY - front, head, left

1шт.

18

1319952C1

PLATE

SECTION - cut off, head

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

22

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch

1шт.

25

1317222C1

PLATE

- deflector

1шт.

30

1321128C1

COVER

- front, head

1шт.

31

1319942C1

COVER

- rear, head

1шт.

32

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

13шт.

35

1317792C2

ANGLE

- shield

1шт.

36

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

38

188029C1

LATCH

- cover

1шт.

39

1319959C1

SUPPORT

- tightener, conveyor

1шт.

40

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

43

1317251C2

SUPPORT

- headshaft

2шт.

44

1310040C1

BAR

- guide, bearing

4шт.

46

1317250C91

FLANGED BEARING,31.75mm ID

BEARING ASSEMBLY - headshaft

2шт.

47

1979642C1

SPACER

- bearing flange

2шт.

48

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

49

557995R11

COLLAR

ASSEMBLY - headshaft

2шт.

50

1317429C1

SHAFT

- head

1шт.

51

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

52

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 35/64 inch

6шт.

53

1317192C1

SPROCKET

- headshaft

2шт.

54

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

58

1317193C2

SPACER

- sprocket

2шт.

59

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- tightener, 5-1/2 inch

1шт.

60

1317474C1

CHANNEL

- lock, tightener

1шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

63

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

8шт.

65

1321265C2

DOOR

- headside

1шт.

67

1321228C1

EXTENSION

- lower, head

1шт.

73

1321496C1

SUPPORT

- side sheet, left

1шт.

76

1321155C1

SPACER

BAR - spacer

1шт.

77

1321617C1

PLATE

SHEET - side, right

1шт.

80

1321618C2

PLATE

SUPPORT - cover, auger

1шт.

81

188029C1

LATCH

- cover

1шт.

83

1321832C1

BRACKET

BRACE - strap

1шт.
