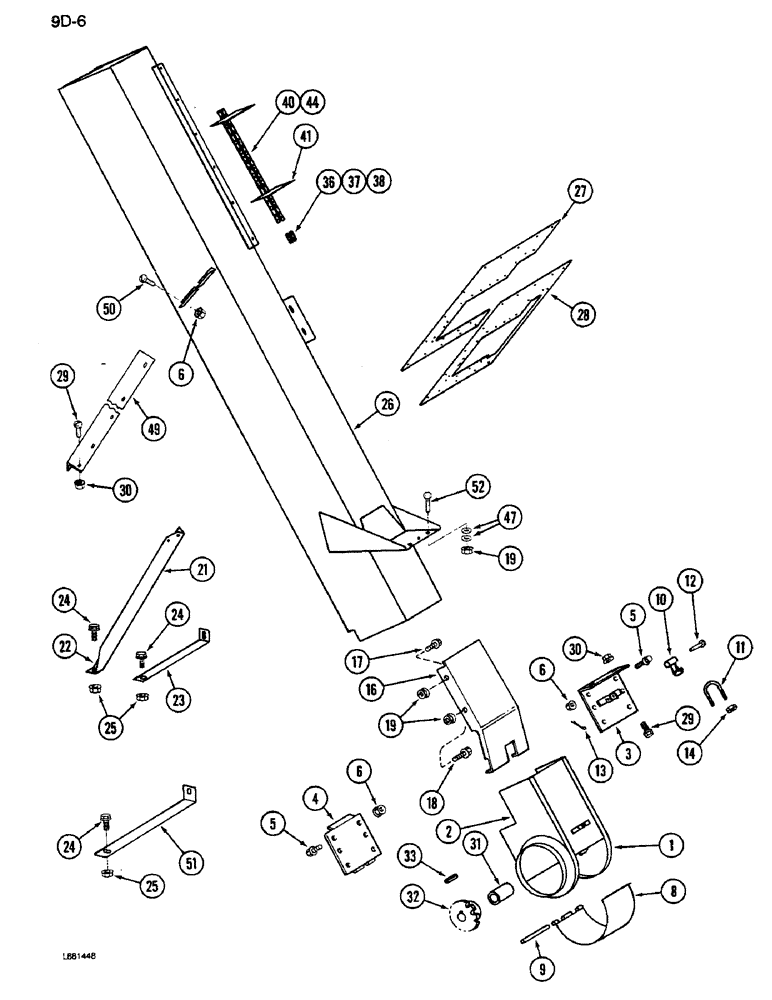

Запчасти Case IH 1640 (9D-06) - GRAIN ELEVATOR HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

1

1318585C2

SIDE PLATE

SIDE - boot, outer

1шт.

2

1317673C2

BASE

SIDE - boot, inner

1шт.

3

1317271C1

COVER

- rear, boot

1шт.

4

1317273C1

COVER

- front, boot

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

12шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

8

1317276C1

DOOR

- boot (Not perforated)

1шт.

8

1317841C1

DOOR

- boot (Perforated)

1шт.

9

1321942C1

ROD

- pivot, door

1шт.

10

155909C1

LATCH

- door

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U-BOLT - latch, 5/16 inch NC

1шт.

12

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

13

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

14

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

16

1317270C1

GUARD

DEFLECTOR - grain, bottom

1шт.

17

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex flange lock, 3/8 NC x 1 inch

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

21

1327667C1

SUPPORT

- elevator, upper (Not Shown)

1шт.

22

1317362C3

SUPPORT ASSY.

BRACKET - support, lower

1шт.

23

1327667C1

SUPPORT

- elevator

1шт.

24

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

5шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.

26

1317376C2

HOUSING

- elevator

1шт.

27

1317688C1

PLATE

- seal

1шт.

28

1317698C1

PLATE

SUPPORT - rear seal

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

12шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

31

1317193C2

SPACER

- sprocket, 31 x 38 x 52 mm

3шт.

32

1317192C1

SPROCKET

- drive

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

1321334C92

ELEVATOR CHAIN

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 36 - 41

1шт.

36

631254R91

DRAG LINK

LINK - connecting

1шт.

37

23442R1

PIN,2.36mm OD

- link

1шт.

38

23880R1

OFFSET LINK

LINK - offset

1шт.

40

1317613C92

PALLET

FLIGHT ASSEMBLY - conveyor (Rubber)

1шт.

41

631253R91

LINK

- roller

2шт.

44

1321443C92

STEEL FLIGHT

FLIGHT ASSEMBLY - conveyor (Steel), Includes flight, bolts, washers and nuts

1шт.

1317480C1

STEEL FLIGHT

FLIGHT - conveyor

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

49

1317493C1

BRACKET

ANGLE - tank bottom stiffener, left

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted turss head, 5/16 NC x 3/4 inch

2шт.

51

1317625C1

SUPPORT

- lower

1шт.

52

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex, lock, 3/8 NC x 1-1/4 inch

2шт.
