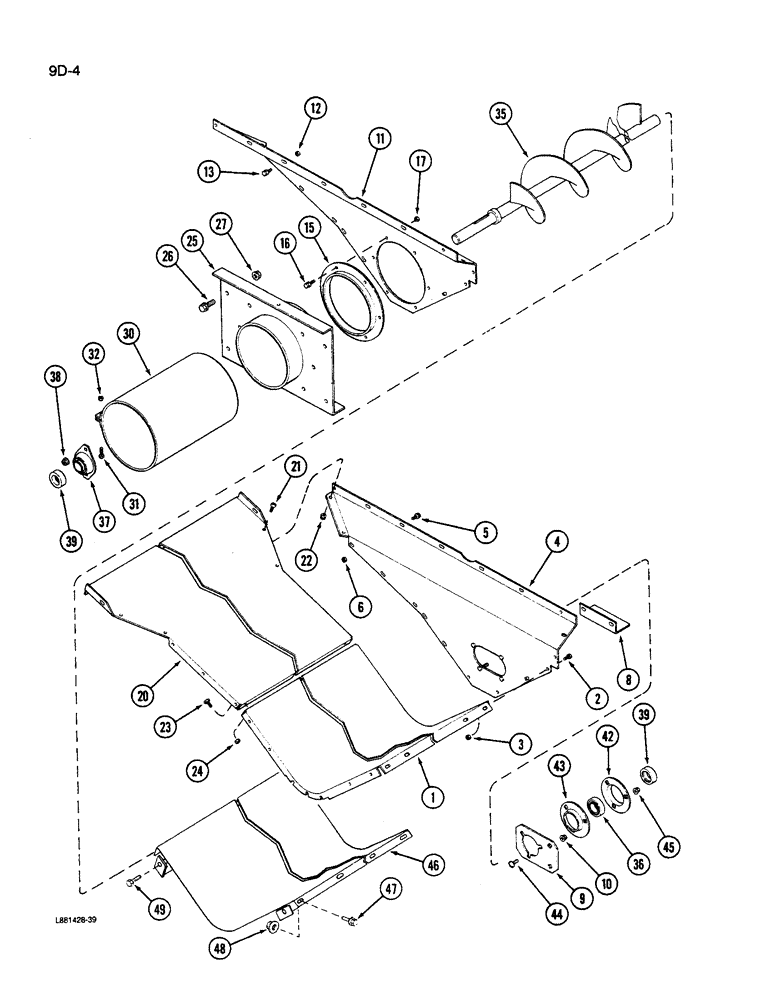

Запчасти Case IH 1640 (9D-04) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1317424C1

TROUGH

- bottom, perforated

1шт.

1

1317408C1

PLATE

TROUGH - horizontal (Grain and corn) (Replaced 1321130C1)

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

3

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

12шт.

4

188284C1

SUPPORT

- trough, left

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

6

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

7шт.

8

1317418C1

ANGLE

- support, trough, left

1шт.

9

186717C1

PLATE

SUPPORT - collecting, auger, left

1шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flanged lock, 3/8 inch

2шт.

11

194563C1

SUPPORT

- trough, right

1шт.

12

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

7шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

15

188285C1

RETAINER

- support, trough, right

1шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/16 x 3/4 inch

6шт.

17

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

6шт.

Ref #1A - 1321130C1 IS A CATALOG ERROR S/B 1317408C1

1шт.

20

191716C1

EXTENSION

SUPPORT - extension, trough

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 x 1/2 inch

12шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

12шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

24

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch

5шт.

25

1327668C1

SUPPORT

- tube, trough

1шт.

26

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, 1/2 NC x 1-1/4 inch

1шт.

26

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange scotch grip, 1/2 x 1 inch

9шт.

27

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch

10шт.

30

1317452C1

CLAMP

- trough, auger (Not perforated)

1шт.

30

1317454C1

CLAMP

- trough, auger (Perforated)

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Not perforated clamp)

3шт.

31

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Perforated clamp)

3шт.

32

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

35

1317484C1

AUGER

- grain

1шт.

36

156011C92

BALL BEARING

BEARING - auger, left

1шт.

37

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - auger, right

1шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

2шт.

39

557995R11

COLLAR

- bearing (With set screw)

2шт.

42

939460R91

FLANGE

- bearing (With 45 degree lubrication fitting)

1шт.

43

939461R1

FLANGE

- bearing (Grooved)

1шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 x 3/4 inch

1шт.

45

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

3шт.

46

1317426C1

COVER

- grain trough (Use with perforated bottom trough)

1шт.

47

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/16 NC x 3/4 inch

14шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

14шт.

49

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - washer head tap, 5/16 x 1 inch

4шт.
