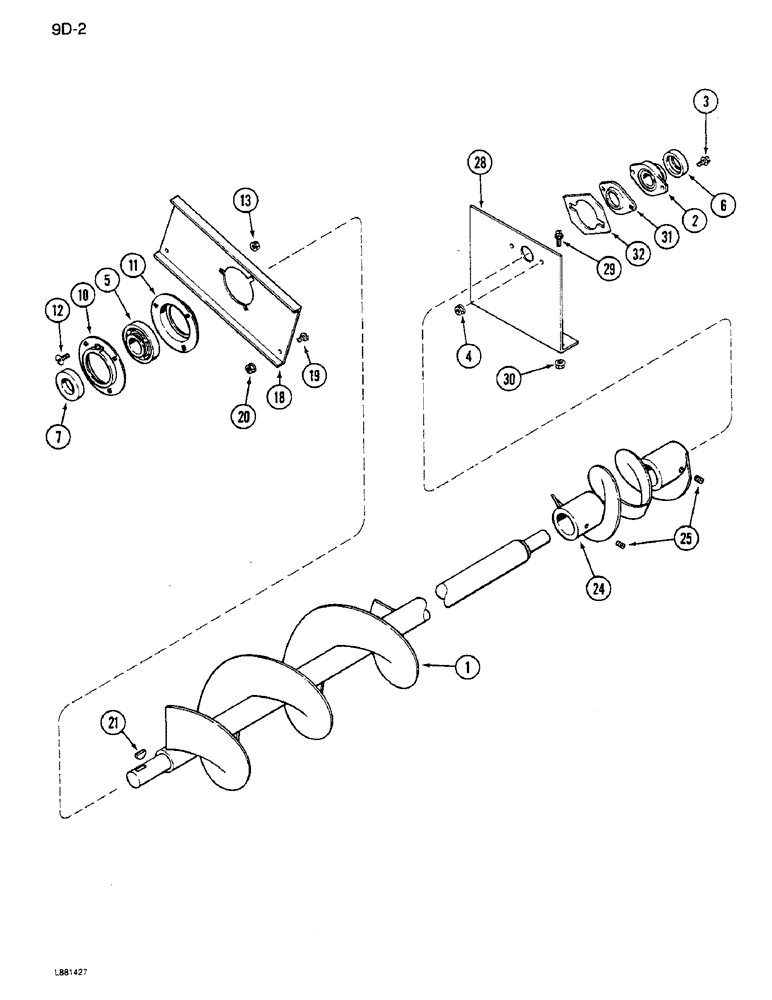

Запчасти Case IH 1640 (9D-02) - HORIZONTAL GRAIN DELIVERY AND DISTRIBUTOR AUGER (16) - GRAIN ELEVATORS & AUGERS

1

1318912C1

AUGER

- delivery, horizontal

1шт.

2

214490C91

BALL BEARING,25.4mm ID

BEARING ASSEMBLY - auger, left

1шт.

3

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange head lock, 5/16 NC x 3/4 inch

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

5

156011C92

BALL BEARING

BEARING - auger, left

1шт.

6

455102R21

COLLAR

ASSEMBLY - bearing, left

1шт.

7

557995R11

COLLAR

ASSEMBLY - bearing, right

1шт.

10

670375R11

FLANGE

ASSEMBLY - bearing, right

1шт.

11

939461R1

FLANGE

- grooved, bearing, right

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

3шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

14

1317947C1

SUPPORT

- bearing, auger, left

1шт.

15

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flanged lock, 3/8 inch

2шт.

18

1321129C1

PLATE

SUPPORT - bearing, auger, right

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 x 1/2 inch

2шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch

2шт.

21

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

24

162103C91

AUGER

- distributor

1шт.

25

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

2шт.

28

1317947C1

SUPPORT

- bearing, auger, left

1шт.

29

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

31

50591

FLANGE,52mm

- bearing

2шт.

32

1979640C1

SPACER

- bearing flange

2шт.
