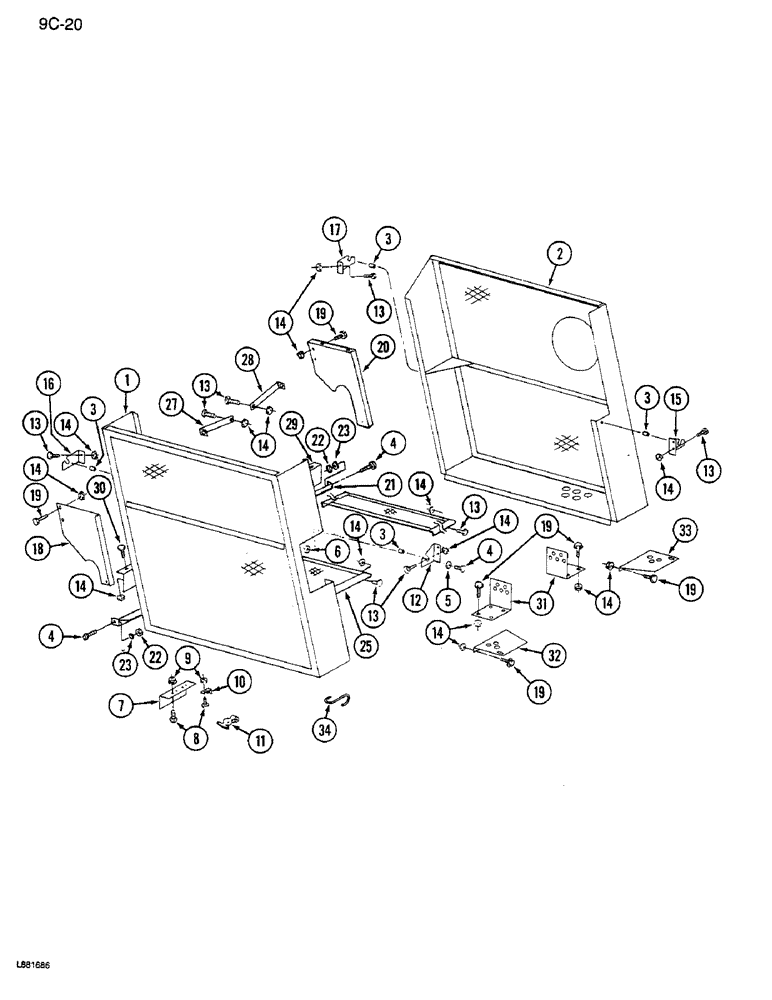

Запчасти Case IH 1640 (9C-20) - FAN SHIELDS (15) - BEATER & CLEANING FANS

1

182824C3

GUARD ASSY.

SHIELD ASSEMBLY - fan drive, left

1шт.

2

182846C3

SUPPORT

SHIELD ASSEMBLY - fan drive, right

1шт.

3

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

4шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

6

21403R1

WASHER

- 13/32 x 1 x 7/64 inch

4шт.

7

181496C1

SHIELD

- latch

2шт.

8

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 x 3/4 inch

6шт.

9

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

6шт.

10

764071C1

BRACKET

HOOK - fan shield latch bracket

2шт.

11

494307C1

LATCH

HOOK - shield hold down latch

2шт.

12

182858C2

SUPPORT

- fan shield rear, left

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

14шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

26шт.

15

182859C2

SUPPORT

- fan shield rear, right

1шт.

16

182860C1

ANGLE

- front left shield

1шт.

17

182861C1

ANGLE

- front right shield

1шт.

18

182862C1

SHIELD

- left front

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

20

182865C1

SHIELD

- right front

1шт.

21

182868C1

ANGLE

- bottom retainer, left

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

182869C1

ANGLE

- bottom retainer, right

1шт.

25

182870C1

GUARD ASSY.

SHIELD ASSEMBLY - lower fan, left

1шт.

26

182876C1

GUARD ASSY.

SHIELD ASSEMBLY - lower fan, right

1шт.

27

182874C1

SUPPORT

- fan bearing, left

1шт.

28

182875C1

SUPPORT

- fan bearing, right

1шт.

29

182879C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - axle to auger bed seal (For field installed fan shields)

1шт.

29

182880C1

SUPPORT

ASSEMBLY - axle to auger bed seal (For J I Case installed fan shields)

1шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

31

182809C2

GUARD

SHIELD - intake lower rear

2шт.

32

182805C1

SHIELD

- intake upper rear, left

1шт.

33

182806C1

SHIELD

- intake upper rear, right

1шт.

34

1302723C1

HOOK

- inlet shield

2шт.
