Запчасти Case IH 1640 (9C-04) - DISCHARGE BEATER BOTTOM (15) - BEATER & CLEANING FANS

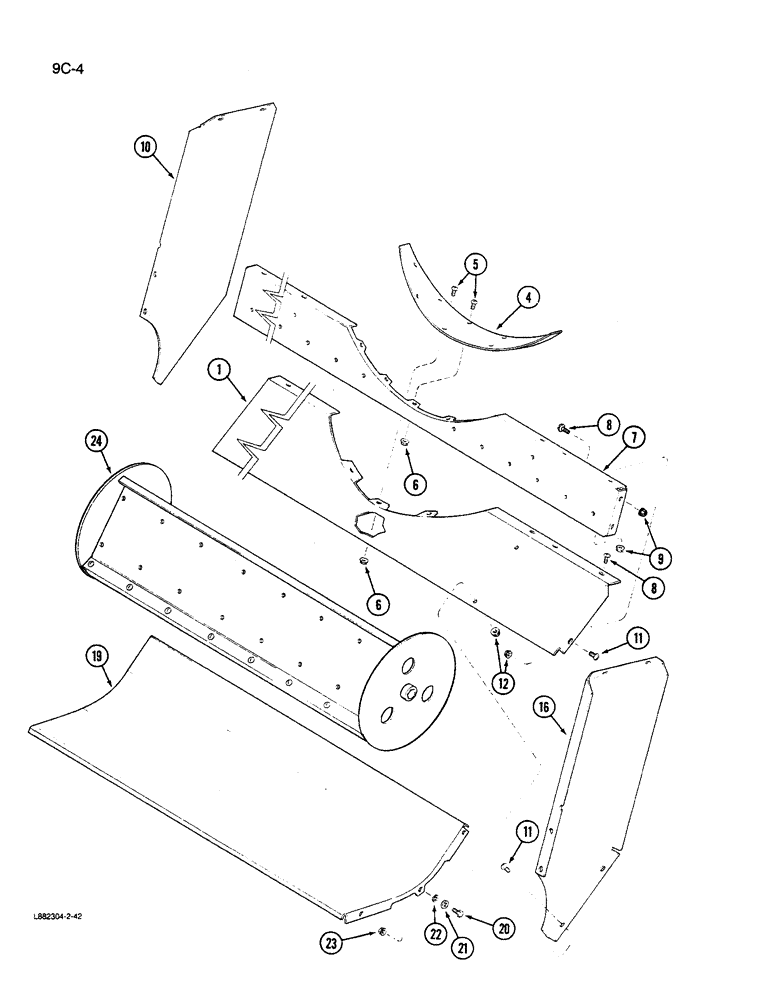

Схема запчастей Case IH 1640 - (9C-04) - DISCHARGE BEATER BOTTOM (15) - BEATER & CLEANING FANS
5
21
11
22
7
16
6
12
8
9
23
1
4
10
24
8
6
19
20
11

Артикул

Название

Примечание

Количество

1

192028C2

SUPPORT

- beater discharge

1шт.

4

193909C2

SUPPORT

- beater bottom, front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

9шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

9шт.

7

182929C1

SUPPORT

- lower rear housing

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/8 inch

10шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

10шт.

10

193452C1

DEFLECTOR

- discharge, left

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

12шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

12шт.

16

193453C1

DEFLECTOR

- discharge, right

1шт.

19

195426C3

SUPPORT ASSY.

BOTTOM - rear beater

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

21

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- hardened

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

359783C1

LOCK NUT

- lock, 3/8 inch NC, Grade 8

2шт.

24

REF

INSTRUCTION

BEATER ASSEMBLY - discharge (See Figure 9C-2)

1шт.

Выбрано товаров: 17
