Запчасти Case IH 1640 (9C-02) - DISCHARGE BEATER (15) - BEATER & CLEANING FANS

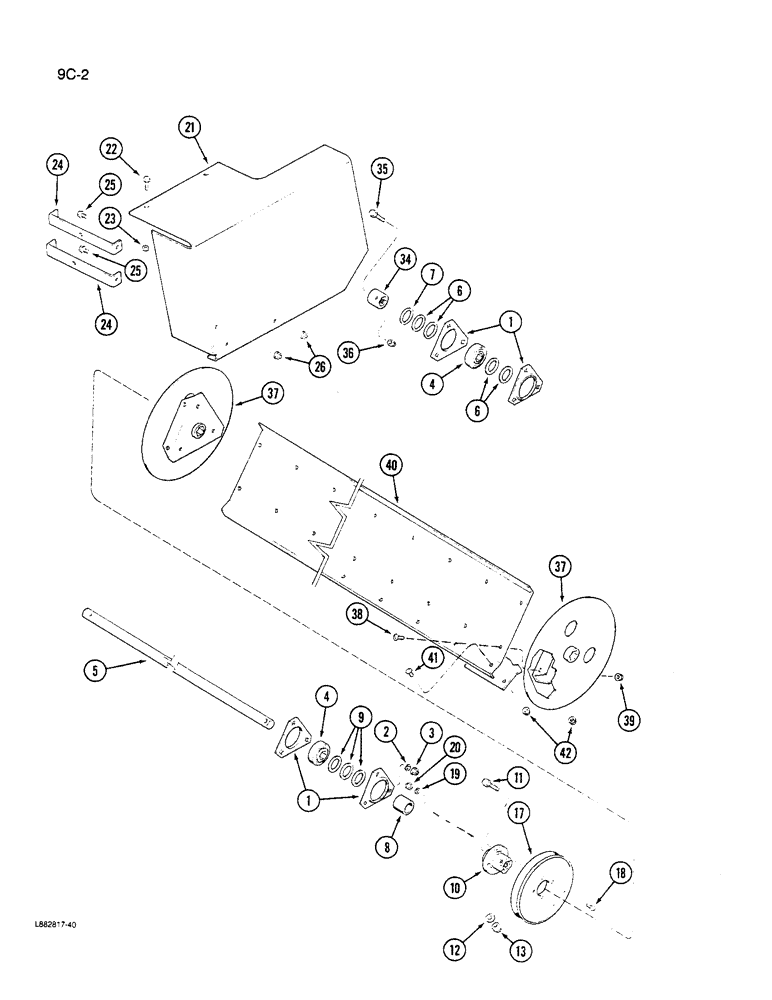

Схема запчастей Case IH 1640 - (9C-02) - DISCHARGE BEATER (15) - BEATER & CLEANING FANS
38
13
25
17
3
19
26
8
7
5
2
6
1
6
20
11
23
12
37
25
4
34
36
9
24
4
24
21
10
42
39
41
18
35
22
1
37
40

Артикул

Название

Примечание

Количество

1

180955C1

FLANGED BEARING,0.375"

FLANGE - beater bearing

4шт.

2

492-11038

LOCK WASHER,3/8"

6шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

4

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - discharge beater

2шт.

5

1302175C1

SHAFT

BAR - discharge beater

1шт.

6

21779R1

WASHER

- 1-11/32 x 2 x 7/64 inch

4шт.

7

21290R1

WASHER

- 1-11/32 x 2 x 1/16 inch

1шт.

8

632147R1

SPACER

- beater driven pulley

1шт.

9

21779R1

WASHER

- 1-11/32 x 2 x 7/64 inch

3шт.

10

1319402C1

HUB

- beater drive pulley

1шт.

11

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

12

26273R1

WASHER

- hardened

1шт.

13

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

17

195161C1

PULLEY

- beater drive

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

21

195113C1

SUPPORT

- beater drive

1шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- lock, 3/8 NC x 1 inch

2шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

24

194760C1

SUPPORT

CHANNEL - beater drive shield

2шт.

25

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

34

1302104C1

HUB

BUSHING - beater, fixed

1шт.

35

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

36

9413979

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 inch NC

1шт.

37

1319266C1

HUB

- beater

2шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

12шт.

39

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

12шт.

40

1319269C1

SUPPORT

BLADE - beater

3шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

33шт.

42

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

27шт.

Выбрано товаров: 32
