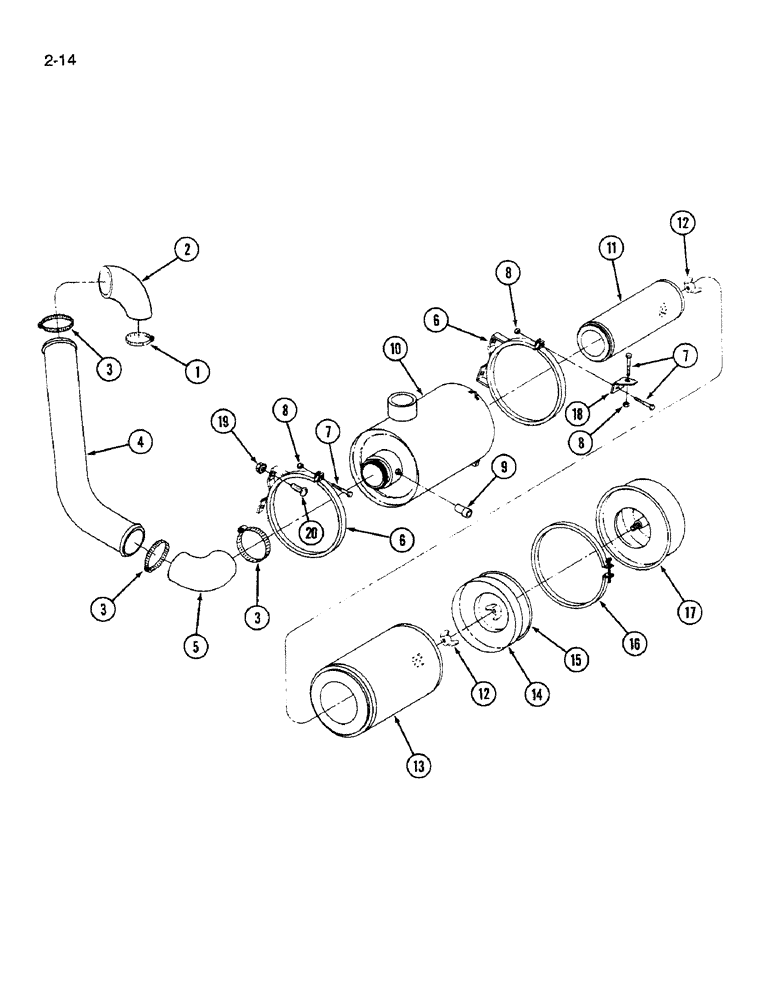

Запчасти Case IH 1640 (2-14) - AIR CLEANER AND ATTACHING PARTS, D466 ENGINE (01) - ENGINE

1

146569C1

CLAMP

- hose, retaining

1шт.

2

548225R1

INTAKE AIR HOSE,3.25" ID, 4.00" ID x 6.50"

ELBOW - inlet

1шт.

3

146570C1

CLAMP

- hose, retaining

3шт.

4

1275781C1

TUBE

ASSEMBLY - air cleaner outlet

1шт.

5

218899R1

ELBOW

- air cleaner outlet

1шт.

6

259922C91

BAND

- air cleaner mounting

2шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

3шт.

9

582214C1

INDICATOR

- air restriction

1шт.

10

530751R92

CLEANER ASSY.

CLEANER ASSEMBLY - air, Includes: Ref. 11 - 17

1шт.

11

530270R2

AIR CLEANER

ELEMENT - safety

1шт.

12

412078C1

WING NUT

NUT ASSEMBLY - element

2шт.

13

529821R2

AIR CLEANER

ELEMENT - primary

1шт.

14

383610C1

BAFFLE

ASSEMBLY - air cleaner

1шт.

15

225067R1

O-RING,10.62" ID x 0.27" Width

- dust cup

1шт.

16

891128R91

CLAMP

ASSEMBLY - air cleaner

1шт.

17

529820R1

CUP

ASSEMBLY - air cleaner

1шт.

18

1317776C1

BRACKET

SUPPORT - air cleaner

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

4шт.
