Запчасти Case IH 1640 (9B-46) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE

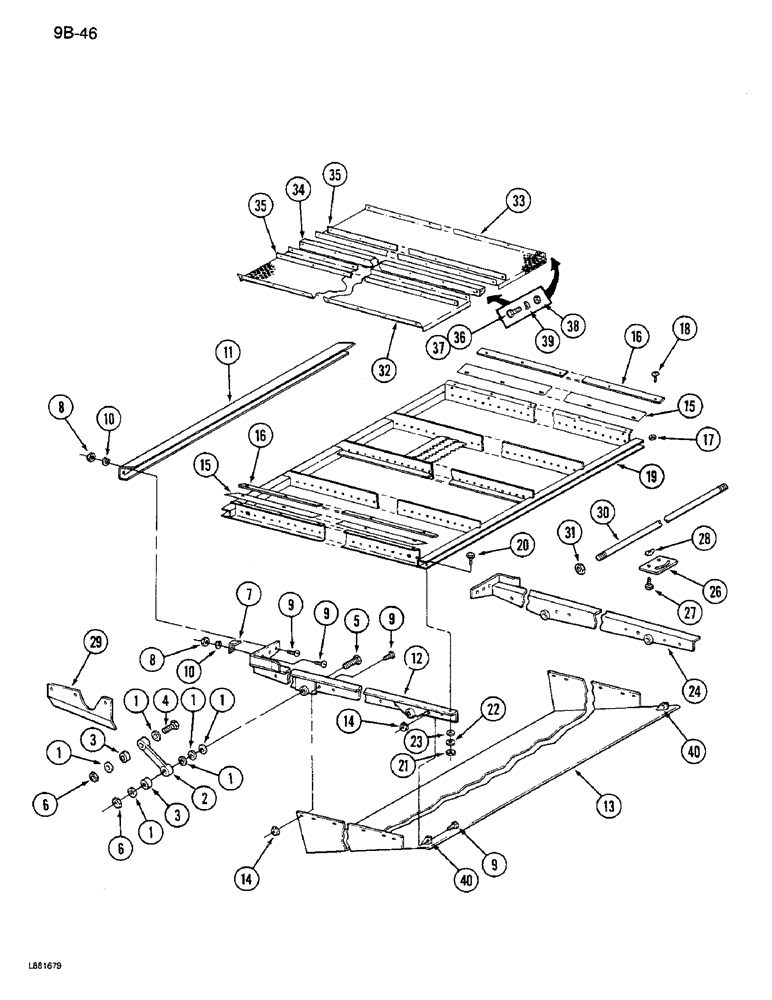

Схема запчастей Case IH 1640 - (9B-46) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE
8
18
21
1
14
9
16
15
36
33
31
14
40
1
1
30
3
9
35
37
16
3
15
38
40
22
19
2
26
9
12
10
6
10
17
4
39
7
29
9
1
1
5
20
24
11
6
32
35
28
13
27
34
1
8
23

Артикул

Название

Примечание

Количество

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

12шт.

2

175160C91

LEVER

HANGER ASSEMBLY - shoe front, Includes: Ref. 3

2шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe front hanger

2шт.

4

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT - round head square neck, 5/8 NC x 3-1/4 inch

2шт.

5

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, Grade 8

2шт.

6

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C2

CLIP

- shoe front support

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

26шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

11

1319238C1

ANGLE

BRACKET - shoe sieve

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

12

1302070C3

SUPPORT

- shoe side, left

1шт.

13

1319211C1

BOTTOM

PAN - bottom

1шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

18шт.

15

192192C1

SEALING STRIP

- shoe sieve

2шт.

16

192193C1

BAR

- shoe sieve seal

2шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

18шт.

18

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

18шт.

19

192091C2

GRAIN SIEVE

SIEVE ASSEMBLY - shoe

1шт.

19

194348C1

GRAIN SIEVE

SIEVE ASSEMBLY - shoe, 1/10 round holes (Parts accessory)

1шт.

19

194349C1

GRAIN SIEVE

SIEVE ASSEMBLY - shoe, 7/32 round holes (Parts accessory)

1шт.

19

194350C1

GRAIN SIEVE

SIEVE ASSEMBLY - shoe, 3/8 round holes (Parts accessory)

1шт.

19

194351C1

GRAIN SIEVE

SIEVE ASSEMBLY - shoe, 1/2 round holes (Parts accessory)

1шт.

19

1302234C1

GRAIN SIEVE

SIEVE ASSEMBLY - shoe, 1-5/8 close slat (Parts accessory)

1шт.

20

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, Grade 8

2шт.

21

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

2шт.

22

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

23

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

24

1302071C3

SUPPORT

- shoe side right

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

1шт.

28

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

29

1302335C2

SUPPORT

- forward shoe left

1шт.

29

1302336C2

SUPPORT

- forward shoe right

1шт.

30

1319217C1

ROD

- return pan bottom rear

1шт.

31

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

32

1319285C1

SCREEN

- perforated side section

2шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

33

1319286C1

SCREEN

- perforated mid section

2шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

34

1319284C1

BAR

- wood spacer

1шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

35

1319300C1

BAR

- screen fastener backing

8шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

18шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

37

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

27шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

27шт.

For use with 192091C2 sieve.

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

40

1319219C1

PLATE

BAR - shoe return pan filler

2шт.

1319278C91

PACKAGE

KIT - parts accessory, alfalfa, Includes: Ref. 11, 32, 33, 34, 35, 36, 37, 38, 39, on Figures 9B-46 and 9B-50

1шт.
