Запчасти Case IH 1640 (9B-44) - AUGER AND ELEVATOR ALARM SWITCH AND SUPPORTS, IF EQUIPPED (14) - ROTOR, CONCANVES & SIEVE

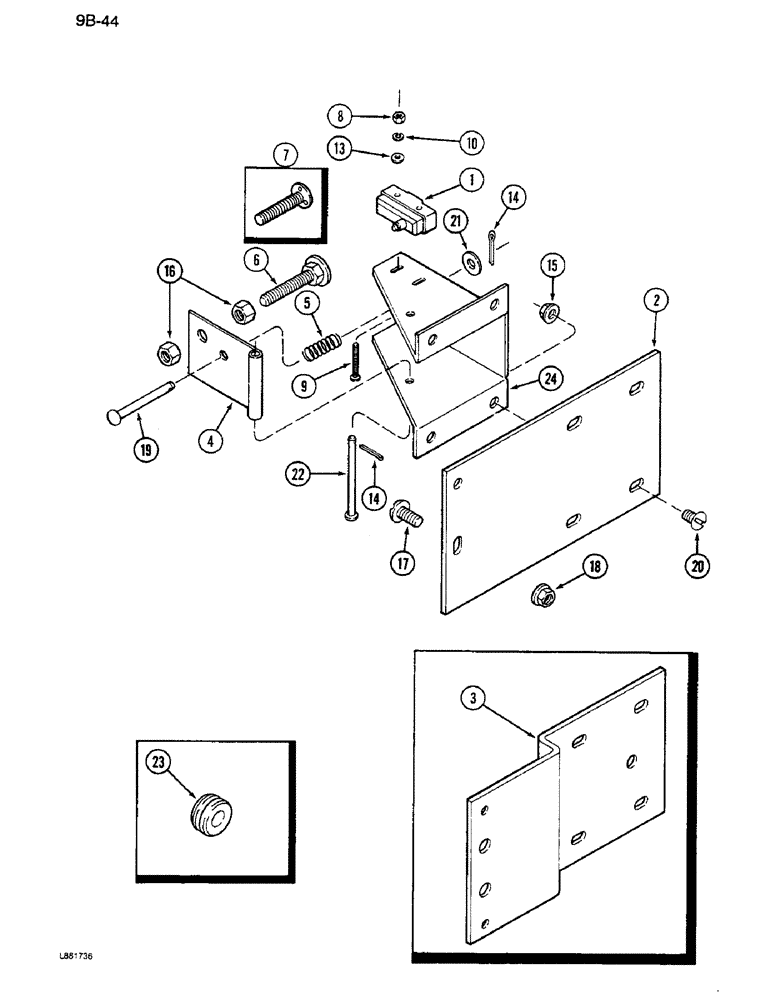

Схема запчастей Case IH 1640 - (9B-44) - AUGER AND ELEVATOR ALARM SWITCH AND SUPPORTS, IF EQUIPPED (14) - ROTOR, CONCANVES & SIEVE
20
4
15
23
10
22
24
9
1
5
18
21
16
17
3
6
2
14
8
14
19
13
7

Артикул

Название

Примечание

Количество

1

574649R91

SWITCH

ASSEMBLY - auger and elevator alarm

2шт.

2

1309429C2

SUPPORT

- auger alarm bracket

1шт.

3

185138C2

SUPPORT

- elevator alarm switch bracket

1шт.

4

167324C1

HINGE

STRIP - auger and elevator alarm switch

2шт.

5

M296

SPRING

- alarm switch strap return

1шт.

6

194304C1

STOP

ASSEMBLY - auger alarm switch

1шт.

7

19765R1

SCREW

STOP - elevator alarm switch

1шт.

8

134530

NUT,Hex, #6 - 32

4шт.

9

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

- slotted, No. 6 x 1-1/4 inch

4шт.

10

131044

LOCK WASHER

Lock, #6

4шт.

13

103337

WASHER,#6

4шт.

14

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

8шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss, 3/8 NC x 3/4 inch

4шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

4шт.

19

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN - headed, 1/4 x 2-1/2 inch

2шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

8шт.

21

21870R1

WASHER

- flat, 17/64 x 3/4 x 3/64 inch

6шт.

22

23099R1

HEADED PIN,5/16" x 3"

PIN - headed, 5/16 x 3 inch

2шт.

23

117960

GROMMET,5/16" ID x .719" x .188"

- rubber, 5/16 x 23/32 x 7/16 inch

2шт.

24

167323C1

SUPPORT

- auger and elevator alarm switch

2шт.

Выбрано товаров: 22
