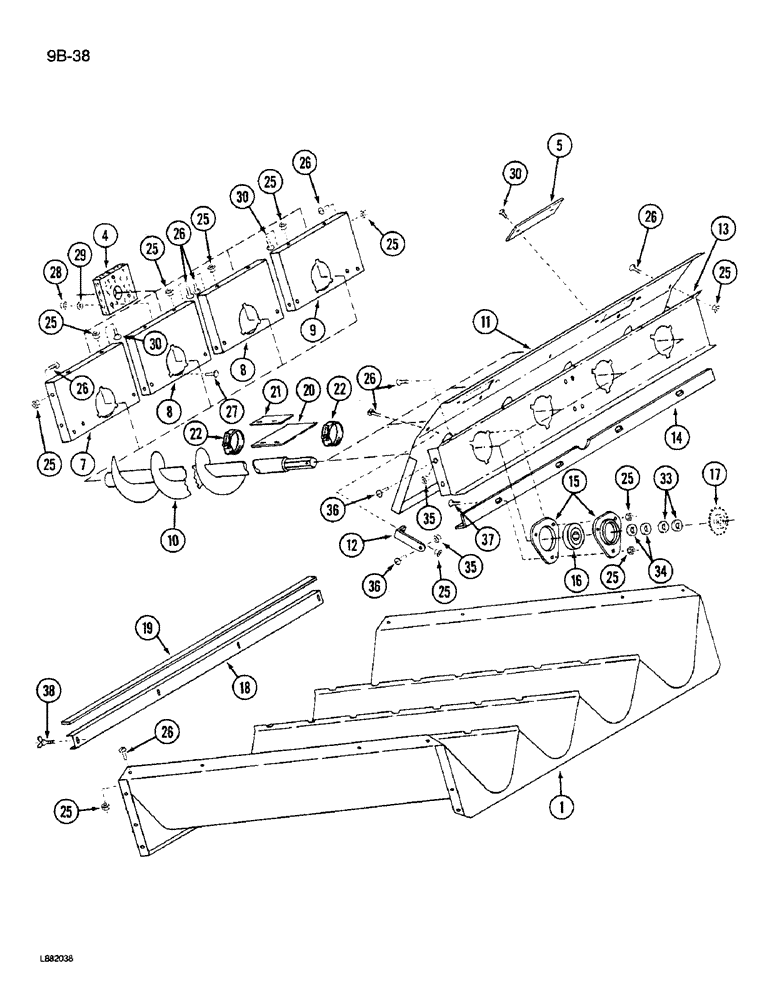

Запчасти Case IH 1640 (9B-38) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

1

185038C3

TRAY

TROUGH ASSEMBLY - auger

1шт.

4

193414C2

BOARD

- front auger bearing

4шт.

5

1319548C1

BAR

COVER - grain sensor

2шт.

7

191662C1

SUPPORT

- left, front auger

1шт.

8

1345013C1

SUPPORT

- center, front auger (Replaces 191659C1)

2шт.

9

191663C1

SUPPORT

- right, front auger

1шт.

10

1308541C1

AUGER

ASSEMBLY - right rotation

4шт.

11

1321373C1

PLATE

FILLER - rotor to auger drive support, Serial Range: -24001

1шт.

11

193556C1

FILLER

- rotor to auger drive support, Start Serial: 24001

1шт.

12

193554C1

SUPPORT

- pan

2шт.

13

1309225C1

SUPPORT

- auger drive gears

1шт.

14

188359C1

ANGLE

- auger support stiffener

1шт.

15

571424R1

FLANGE

- auger bearing

8шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - auger drive

4шт.

17

1300639C1

GEAR-SET

GEAR SET - auger drive, 14 tooth

1шт.

18

1319163C91

COVER

- auger trough clean out, Includes: Ref. 19

1шт.

19

1309426C1

SEALING STRIP,13mm W x 990mm L x 6mm Thk

- clean out trough

1шт.

20

1302112C1

STRIP

- auger bed grain spreader

1шт.

21

1302113C1

BAR

- grain spreader strip

1шт.

22

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

58шт.

27

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

12шт.

28

9413979

LOCK NUT,3/8"-16, GC

NUT - hex prevailing torque lock, 3/8 inch NC

12шт.

29

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

12шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

1шт.

33

20885R1

WASHER

- flat, 1-9/16 x 2 x 3/64 inch

8шт.

34

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

8шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

7шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

7шт.

37

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss, 5/16 NC x 1 inch

4шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT - wing, clean out cover

4шт.
