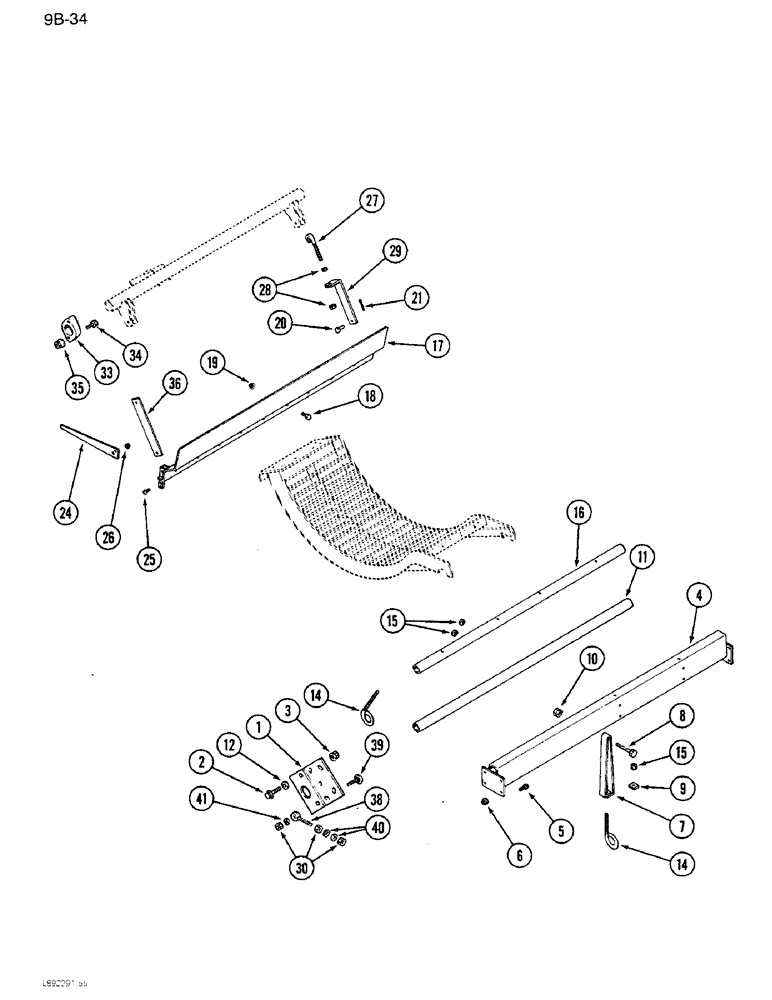

Запчасти Case IH 1640 (9B-34) - CONCAVES, ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE

1

1338040C1

SUPPORT

- concave anchor, rear (Used with 5/8 inch hardware)

1шт.

1

1338039C1

SUPPORT

- concave anchor, front (Used with 5/8 inch hardware)

1шт.

1

1302349C1

SUPPORT

- concave anchor (Use with 1/2 inch hardware)

2шт.

2

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, 1/2 NC x 1-1/4 inch

10шт.

2

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

BOLT - hex flange special, 5/8 NC x 1-1/2 inch

10шт.

3

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

10шт.

3

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

10шт.

4

1317229C1

SUPPORT

- Concave

1шт.

5

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, 1/2 NC x 1-1/4 inch

6шт.

6

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

6шт.

7

1317233C1

SUPPORT

- concave strap

2шт.

8

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

9

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/4 x 3/16 inch (Replaces 1321174C1)

2шт.

10

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

195255C1

PIPE

- concave control

1шт.

12

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

10шт.

14

1317280C1

BOLT,1/2" - 13 x 152mm, Full Thd

EYE BOLT - concave

6шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

16

193790C3

PIPE

- concave

1шт.

17

1318433C1

SUPPORT

- concave anchor

1шт.

18

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

12шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

12шт.

20

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN - clevis

2шт.

21

586591R1

COTTER PIN

PIN - hair 1/8

2шт.

24

1317660C1

SUPPORT

- concave indicator

1шт.

25

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

2шт.

26

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

2шт.

27

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

EYEBOLT - concave adjusting

1шт.

28

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

29

1317349C1

SUPPORT

- concave adjusting

1шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

33

192890C2

HUB

- concave control shaft (Replaces 1319251C2)

2шт.

34

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

35

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

4шт.

36

1317388C1

BAR

- concave control

1шт.

38

177662C2

EYEBOLT

- anchor support

2шт.

39

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

40

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
