Запчасти Case IH 1640 (9B-18) - ROTOR, GRAIN AND CORN, (CONT) (14) - ROTOR, CONCANVES & SIEVE

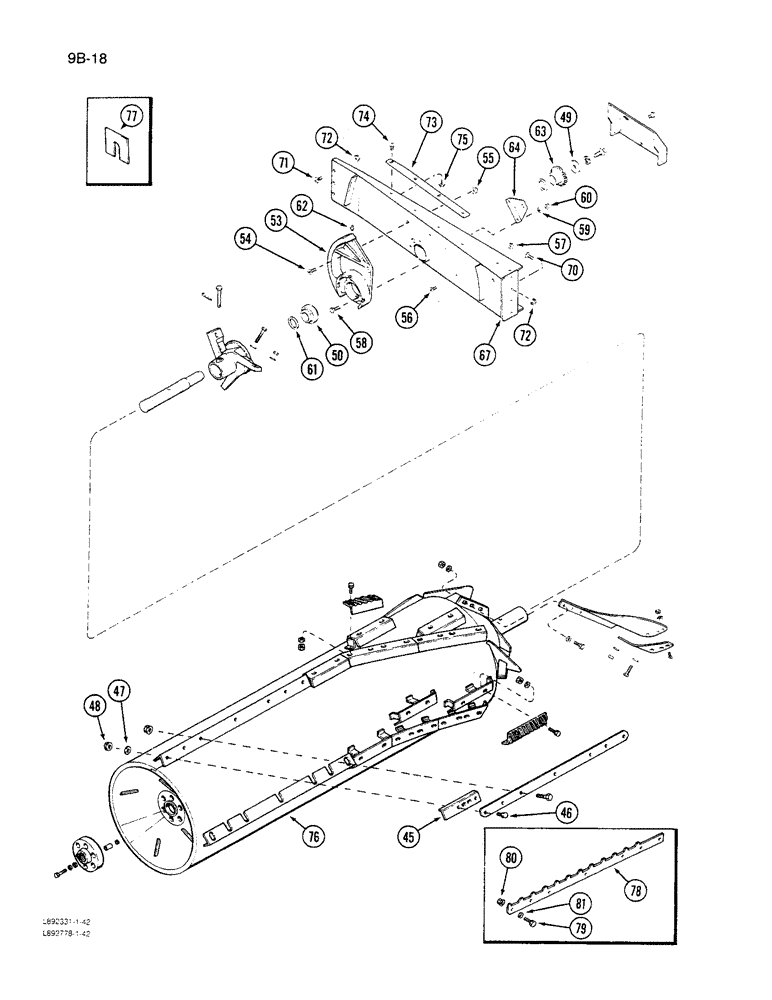

Схема запчастей Case IH 1640 - (9B-18) - ROTOR, GRAIN AND CORN, (CONT) (14) - ROTOR, CONCANVES & SIEVE
75
74
59
61
77
57
60
49
46
62
45
56
63
80
53
48
50
47
81
58
73
78
64
71
67
54
55
76
79
70
72
72

Артикул

Название

Примечание

Количество

45

183335C3

SUPPORT

BRACKET - rotor extension

3шт.

46

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

47

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened

6шт.

48

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

6шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- rotor front shaft, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING ASSEMBLY - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

2шт.

57

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

58

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

63

198527C1

ROTOR

- multi-position tachometer

1шт.

64

1301239C1

BRACKET

- rotor tachometer

1шт.

67

193163C5

SUPPORT

- front bearing

1шт.

70

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

71

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- slotted truss head, 1/2 NC x 1-1/4 inch

3шт.

72

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

7шт.

73

1308967C1

BAR

- rotor front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

4шт.

75

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

4шт.

76

1324031C1

PACKAGE

KIT - grain rotor separator angle bar support

1шт.

1324208C1

SHIM KIT

KIT - rotor rasp shim, Includes shims

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch

28шт.

78

1302103C3

BAR

- rotor rear tooth

3шт.

79

113-2244

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

21шт.

80

9413979

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 inch, Grade 8

21шт.

81

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 3/32 inch

21шт.

Выбрано товаров: 35
