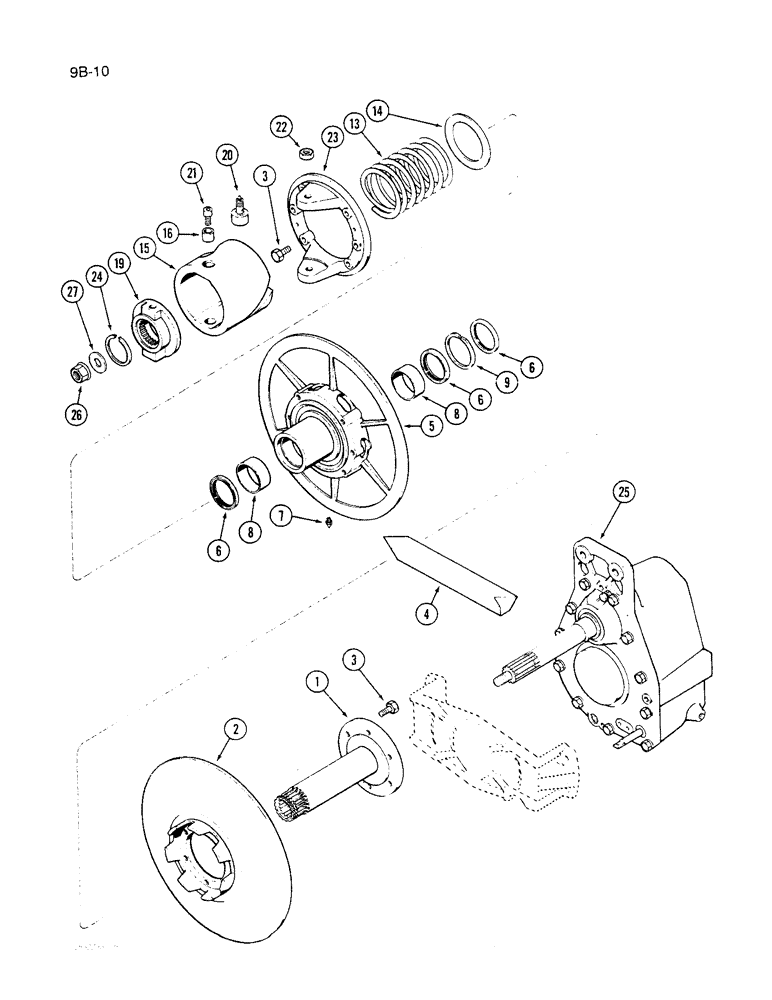

Запчасти Case IH 1640 (9B-10) - 1315291C2 ROTOR DRIVE, P.I.N. JJC0024223 AND AFTER (14) - ROTOR, CONCANVES & SIEVE

1

1315291C2

HUB

- fixed variable pulley

1шт.

2

1315292C1

PULLEY

- fixed variable

1шт.

3

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

12шт.

4

193923C3

BELT

Rotor variable drive

1шт.

5

1315294C3

PULLEY

ASSEMBLY - adjustable variable, Includes: Ref. 6 -9

1шт.

6

193965C91

SEAL

- pulley

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - pulley (Order 188839C91, set of 2)

2шт.

9

537602R1

RING

- pulley retaining

1шт.

13

193936C2

SPRING

- rotor drive torque sensing

1шт.

14

1315521C1

THRUST BEARING

BEARING - rotor drive thrust

1шт.

15

1315299C1

CAMSHAFT

CAM - rotor drive torque sensing (Replaces 1315634C2), Includes: Ref. 16

1шт.

16

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

19

1315297C2

HUB,20T

YOKE ASSEMBLY - torque sensing cam follower

1шт.

20

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

21

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

22

129-127

NUT,5/8"-18, G5

2шт.

23

1315344C1

HUB

- cam follower

1шт.

24

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- hub cam follower retaining

1шт.

25

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (See Figure 9B-14)

1шт.

26

1315288C1

FLANGE NUT

- special lock

1шт.

27

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- hardened

1шт.
