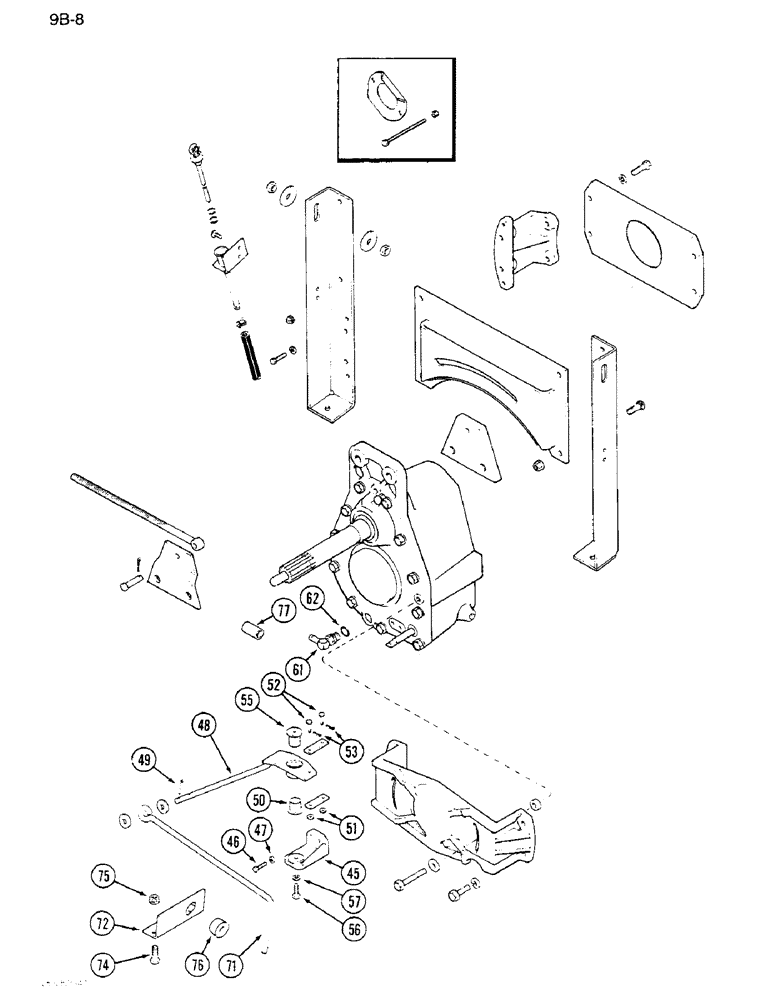

Запчасти Case IH 1640 (9B-08) - ROTOR DRIVE, P.I.N. JJC0024223 AND AFTER, (CONT) (14) - ROTOR, CONCANVES & SIEVE

45

1979167C1

SUPPORT ASSY.

SUPPORT - gear housing pivot (Replaces 188171C1)

1шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

46

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

48

1979164C1

LEVER

- rotor drive shift (Replaces 188172C2)

1шт.

49

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

50

1979265C1

BUSHING

- shift lever (Replaces 277523R1)

1шт.

51

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

52

21886R1

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch

2шт.

53

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

55

188170C1

NUT

NUT - shift lever

1шт.

56

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

61

188272C1

ELBOW

- gear housing

1шт.

62

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

71

186648C2

ROD

- lever shaft control linkage

1шт.

72

188816C91

ANGLE

- support, rod lever control link, with decal

1шт.

74

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

75

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

2шт.

76

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

77

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - oil hose cover

1шт.
