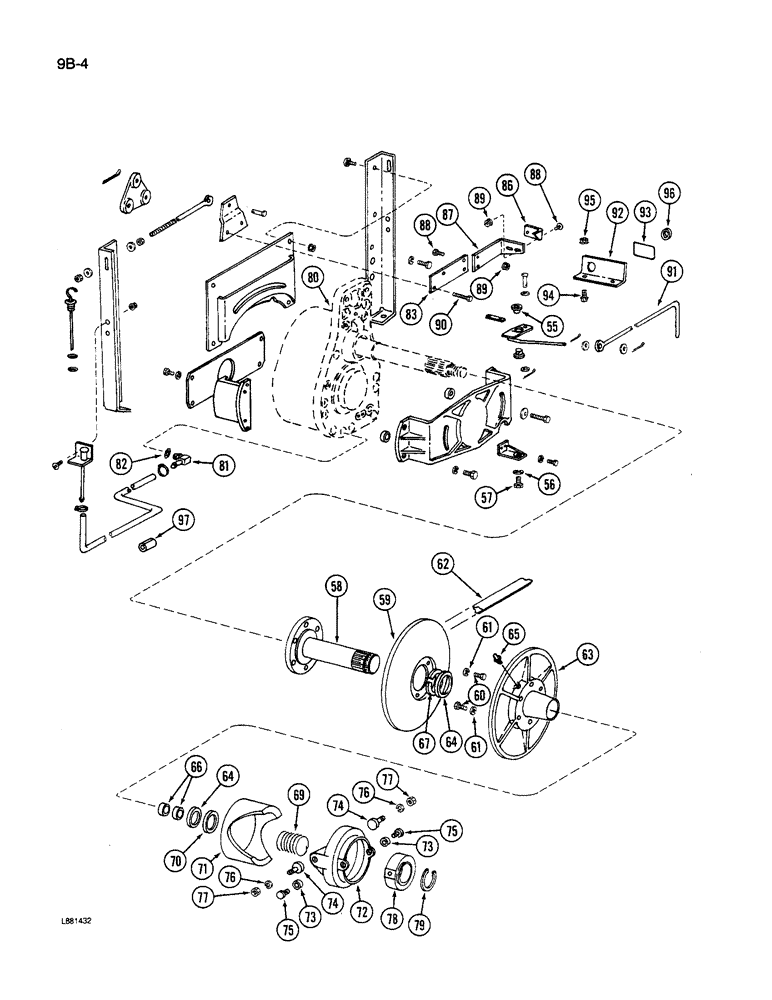

Запчасти Case IH 1640 (9B-04) - ROTOR DRIVE, PRIOR TO P.I.N. JJC0024223, (CONT) (14) - ROTOR, CONCANVES & SIEVE

55

188170C1

NUT

NUT - shift lever

1шт.

56

492-11038

LOCK WASHER,3/8"

1шт.

57

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

58

193962C2

HUB

- fixed variable pulley

1шт.

59

185433C1

PULLEY

- fixed variable

1шт.

60

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch

12шт.

61

366864C1

LOCK WASHER,1/2"

1/2"

12шт.

62

193923C3

BELT

Rotor variable drive

1шт.

63

185417C91

PULLEY ASSY.

PULLEY ASSEMBLY - adjustable variable, Includes: Ref. 64 - 67

1шт.

64

193965C91

SEAL

- pulley

3шт.

65

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT

1шт.

66

NSS

NOT SOLD SEPARAT

BUSHING - pulley (Order 188839C91, set of 2)

2шт.

67

537602R1

RING

- pulley retaining

1шт.

69

193936C2

SPRING

- rotor drive torque sensing

1шт.

70

188210C91

CAM FOLLOWER

BEARING ASSEMBLY - rotor drive thrust

1шт.

71

185416C1

CAM

- rotor drive torque sensing

1шт.

72

195247C91

YOKE

ASSEMBLY - torque sensing cam follower, Includes: Ref. 73

1шт.

73

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

74

193943C91

BEARING ASSY

BEARING - cam follower

2шт.

75

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

76

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

77

129-125

NUT,1/2"-20, G5

2шт.

78

193938C1

HUB

- cam follower

1шт.

79

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- hub cam follower retaining

1шт.

80

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive (See Figure 9D-8)

1шт.

81

188272C1

ELBOW

- gear housing

1шт.

82

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

83

185397C1

SUPPORT

BAR - gauge angle (If equipped)

1шт.

86

186031C2

ANGLE

- rotor driven pulley gauge (If equipped)

1шт.

87

184246C1

ANGLE

- gauge support (If equipped)

1шт.

88

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch (If equipped)

2шт.

89

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC (If equipped)

2шт.

90

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

91

186648C2

ROD

- lever shaft control linkage

1шт.

92

188816C91

ANGLE

- rod lever control link, Includes: Ref. 93

1шт.

93

188815C1

DECAL

- caution

1шт.

94

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

95

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch

2шт.

96

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

97

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - oil hose cover

1шт.
