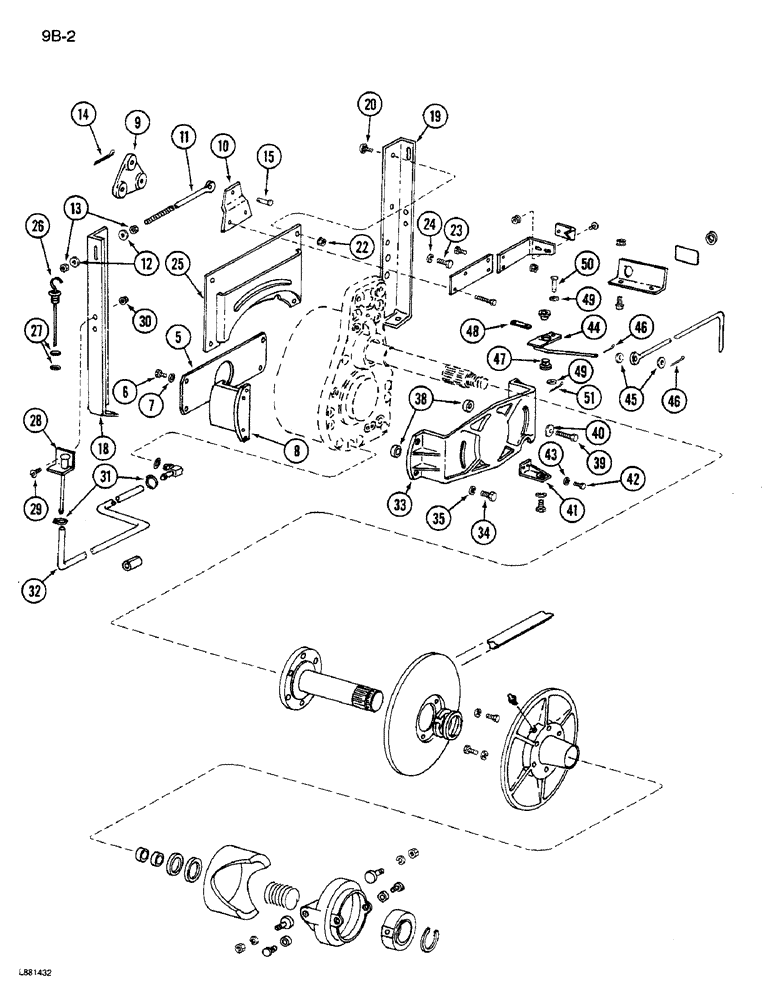

Запчасти Case IH 1640 (9B-02) - ROTOR DRIVE, PRIOR TO P.I.N. JJC0024223 (14) - ROTOR, CONCANVES & SIEVE

186364C1

RETAINER

- torque sensing spring removal

1шт.

1315304C1

PLATE

- spring removal

1шт.

1319996C1

ROD,Hex, 3/8" x 10"

ASSEMBLY - torque sensing spring removal, Includes hex nut

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

181315C1

PLATE

- gear housing support, front

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

181314C2

BLOCK

- housing support, front

2шт.

9

188141C1

SUPPORT

- gear housing anchor

1шт.

10

188142C1

SUPPORT

- gear housing anchor

1шт.

11

188143C1

EYEBOLT

EYE BOLT - gear housing

1шт.

12

195-2203

WASHER,21/32" x 2" x .238"

- 21/32 x 2 x 11/64 inch

2шт.

13

129-107

NUT,5/8"-11, G5

2шт.

14

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

15

21573R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

1шт.

18

194055C2

SUPPORT

- gear housing, left

1шт.

19

194056C2

SUPPORT

- gear housing, right

1шт.

20

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

22

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

6шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

1338395C1

SUPPORT ASSY.

SUPPORT - gear housing (Replaces 188137C1)

1шт.

26

194066C91

DIPSTICK

GAUGE ASSEMBLY - rotor gear housing, Includes: Ref. 27

1шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1/8 inch

2шт.

28

193946C1

TUBE,12.7 mm OD

- gear housing gauge

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

31

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

32

NSS

NOT SOLD SEPARAT

HOSE - gear housing (Order 180718C1 and, Serial Range: cut-length)

1шт.

33

194058C1

SUPPORT

- gear housing, rear

1шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

38

194077C1

SPACER

- gear housing

2шт.

39

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

40

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- hardened

2шт.

41

188171C1

SUPPORT

- gear housing pivot

1шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

188172C2

LEVER ASSY.

LEVER - rotor drive shift

1шт.

45

20601R1

WASHER

- 17/32 x 1-1/4 x 7/64 inch

2шт.

46

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

47

277523R1

BUSHING

- shift lever

1шт.

48

188169C1

BAR

- shift lever

2шт.

49

25707R1

WASHER,.281" x 5/8" x .075", HDN

- 9/32 x 5/8 x 3/64 inch

2шт.

50

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

2шт.

51

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.
