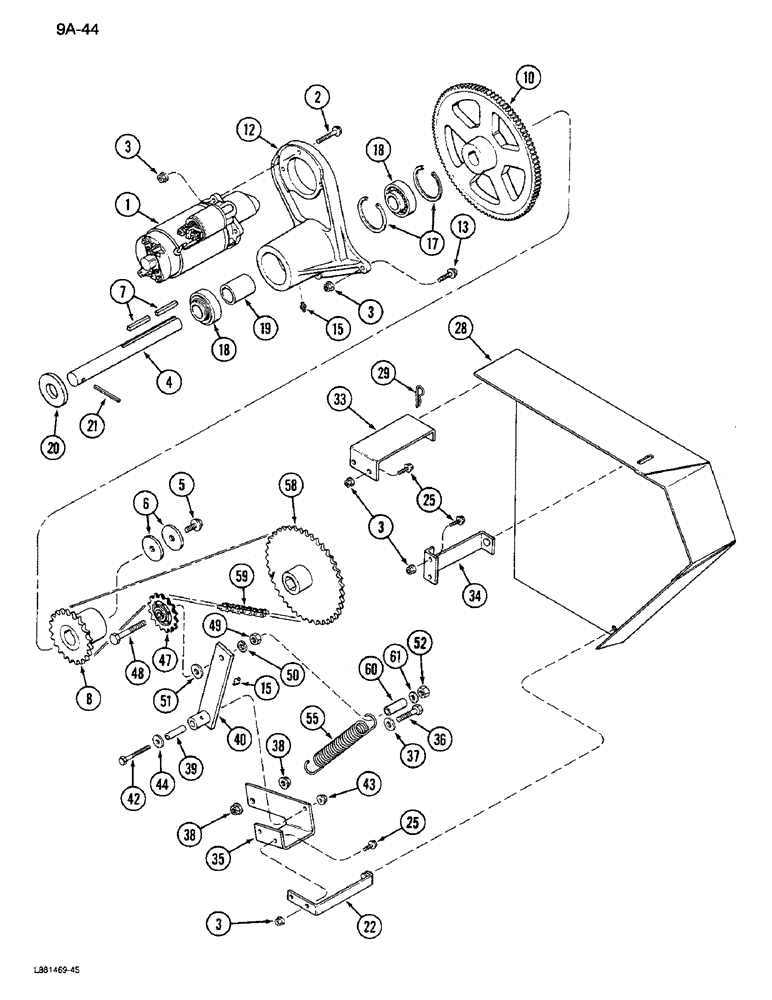

Запчасти Case IH 1640 (9A-44) - FEEDER REVERSER, WITHOUT ROCK TRAP (13) - FEEDER

1

REF

INSTRUCTION

MOTOR ASSEMBLY - reverser, feeder (See Figure 4-58)

1шт.

2

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

4

1321534C1

SHAFT

- reverser

1шт.

5

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

6

22042R1

WASHER

- flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

- drive, 20 tooth

1шт.

10

1321537C91

FLYWHEEL

ASSEMBLY - motor, reverser

1шт.

12

1321539C1

HOUSING

- shaft, reverser

1шт.

13

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

2шт.

17

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSEMBLY - ball

2шт.

19

1321523C1

SPACER

- bearing

1шт.

20

30190R1

WASHER,M39 x 78.5 x 7, HT

- flat, 39 x 78 x 7 mm

1шт.

21

28340R1

PIN,1/2" x 3", Coiled

1шт.

22

1321782C2

SUPPORT

- shield (Replaces 1321780C1)

3шт.

85490H

SPACER

- 5/8 x 3/4 inch (If equipped)

2шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

11шт.

28

1321516C2

GUARD

SHIELD - reverser, feeder

1шт.

29

480523R1

HAIR PIN COTTER

3шт.

33

1329840C1

BRACKET

- support, rear

1шт.

34

1329838C2

BRACKET

- support, front

1шт.

35

1979299C1

SUPPORT ASSY.

SUPPORT - idler bar (Replaces 1957648C2)

1шт.

36

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

37

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

38

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

39

1979303C1

SPACER

- tube, 5/8 x 2 inch (Replaces 221338H1)

1шт.

40

1979305C1

ARM

SUPPORT - idler (Replaces 1321933C3)

1шт.

42

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

42

25253R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

- hex, 3/8 NC x 7 inch

1шт.

44

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 2-1/2 x 5/32 inch

1шт.

47

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler

1шт.

48

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

49

129-107

NUT,5/8"-11, G5

1шт.

50

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

51

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat

1шт.

52

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

55

1330032C1

SPRING

- return

1шт.

58

1329720C2

SPROCKET

- driven, 40 tooth

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - drive

1шт.

For service order 75 links of No. 60H chain and one 1317D connecting link.

1шт.

60

UA17298

SPACER,7/8" Tube x 1 1/16"

- 7/8 x 1-1/16 inch

1шт.

61

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.
