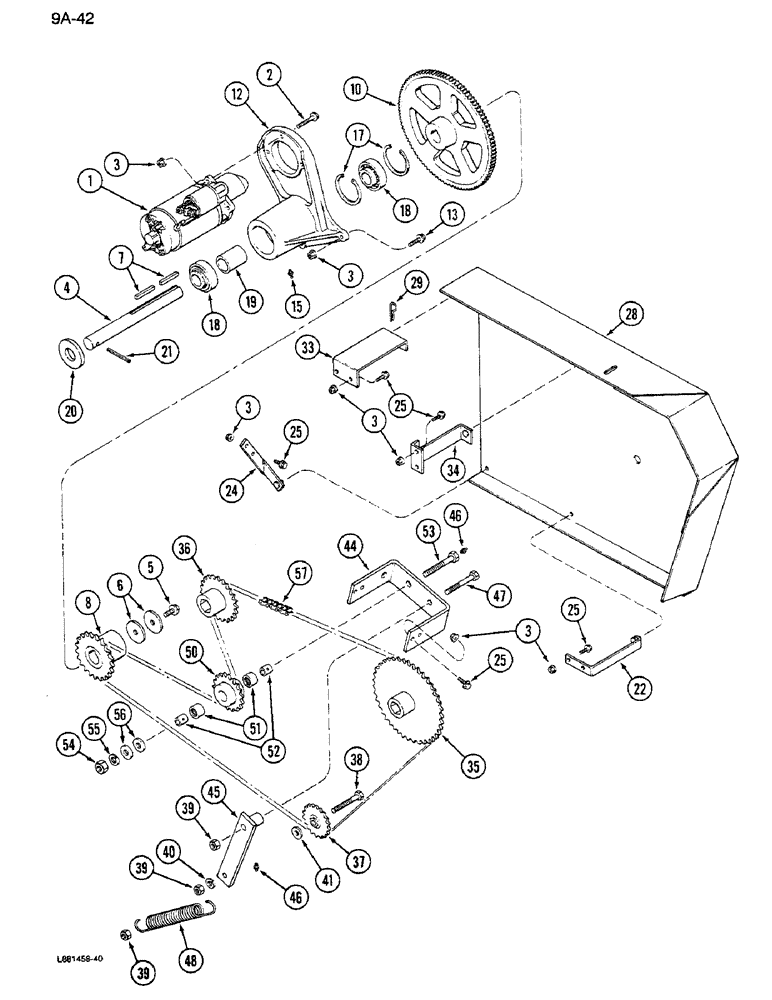

Запчасти Case IH 1640 (9A-42) - FEEDER REVERSER, WITH ROCK TRAP (13) - FEEDER

1

REF

INSTRUCTION

MOTOR ASSEMBLY - reverser, feeder (See Figure 4-58)

1шт.

2

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

4

1321534C1

SHAFT

- reverser

1шт.

5

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

6

22042R1

WASHER

- flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

- drive, 20 tooth

1шт.

10

1321537C91

FLYWHEEL

ASSEMBLY - motor, reverser

1шт.

12

1321539C1

HOUSING

- shaft, reverser

1шт.

13

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

17

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSEMBLY - ball

2шт.

19

1321523C1

SPACER

- bearing

1шт.

20

30190R1

WASHER,M39 x 78.5 x 7, HT

- flat, 39 x 78 x 7 mm

1шт.

21

28340R1

PIN,1/2" x 3", Coiled

1шт.

22

1321780C2

SUPPORT

- shield

1шт.

24

1321710C1

SUPPORT

- shield

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

14шт.

28

1321905C2

GUARD

SHIELD - reverser, feeder

1шт.

29

480523R1

HAIR PIN COTTER

4шт.

33

1329840C1

BRACKET

- support, rear

1шт.

34

1329838C2

BRACKET

- support, front

1шт.

35

1329720C2

SPROCKET

- driven

1шт.

36

1329719C2

SPROCKET

- driven

1шт.

37

541857R92

SPROCKET,15T

- idler

1шт.

38

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

39

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

3шт.

40

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

41

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

44

1321528C2

SUPPORT

- idler, outer

1шт.

45

1979305C1

ARM

SUPPORT - idler (Replaces 1321933C3)

1шт.

46

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive thread

2шт.

47

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

48

1330032C1

SPRING

- return, idler

1шт.

50

1321531C92

DRIVE SPROCKET

SPROCKET ASSEMBLY - idler, fixed, Includes: Ref. 51

1шт.

51

630836C91

NEEDLE BEARING,Needle, 25.4mm ID x 33.35mm OD x 20.62mm W

BEARING - needle, 1-19/64 inch O.D.

2шт.

51

545320R91

NEEDLE BEARING,Needle, 25.39mm ID x 31.76mm OD x 20.62mm W

- needle, 1-1/4 inch O.D.

2шт.

52

1327991C1

BUSHING,19.04mm ID x 25.37mm OD x 25.65mm L

- bearing, inner

2шт.

53

1327990C1

BOLT,Hex, 3/4" - 10 x 4, Type 5, Drilled

Idler Hex, 3/4"-10 x 4, Drilled

1шт.

54

129-108

NUT,3/4"-10, G5

1шт.

55

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

56

25548R1

WASHER

- flat, 13/16 x 1-1/2 x 7/32 inch

2шт.

57

REF

INSTRUCTION

CHAIN ASSEMBLY - drive

1шт.

Use 119 links from No. 60H chain and one 1317D connecting link.

1шт.
