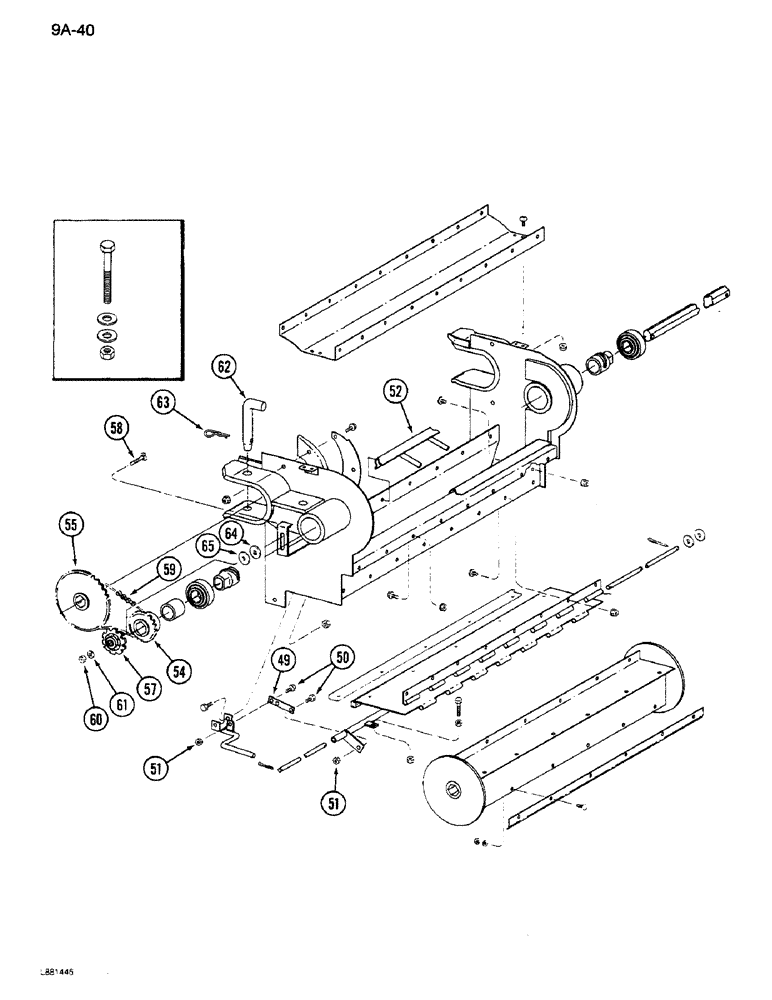

Запчасти Case IH 1640 (9A-40) - ROCK TRAP, (CONT) (13) - FEEDER

49

1320128C1

LINK

- connecting

2шт.

50

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

51

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

52

1320846C1

SUPPORT ASSY.

ANGLE - support

1шт.

54

1329719C2

SPROCKET

- drive, 20 tooth

2шт.

54

1320095C3

DRIVE SPROCKET

SPROCKET - drive (16 tooth)

2шт.

55

1320110C3

SPROCKET

- drive (32 tooth)

1шт.

57

629972R91

DRIVE SPROCKET,15T

SPROCKET - tightener (15 tooth)

1шт.

58

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

58

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - sprocket

2шт.

For service order 123 links of No. 60H chain, 2-1317D connecting link and 1-1316D roller link.

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - sprocket

2шт.

For service order 117 links of No. 60H chain 2-1317D connecting linkand 1-1316D roller link.

1шт.

59

REF

INSTRUCTION

CHAIN ASSEMBLY - sprocket, chrome

2шт.

For service order 124 links of 1979285C1 chrome roller chain and 2-1329768C1 connecting link.

1шт.

60

129-107

NUT,5/8"-11, G5

1шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

192533C2

ROD

PIN - pivot

1шт.

63

520175R1

CLIP

PIN - cotter, hair type

1шт.

64

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

65

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

3шт.

1957278C1

LATCH

KIT - rock trap latch support

1шт.
