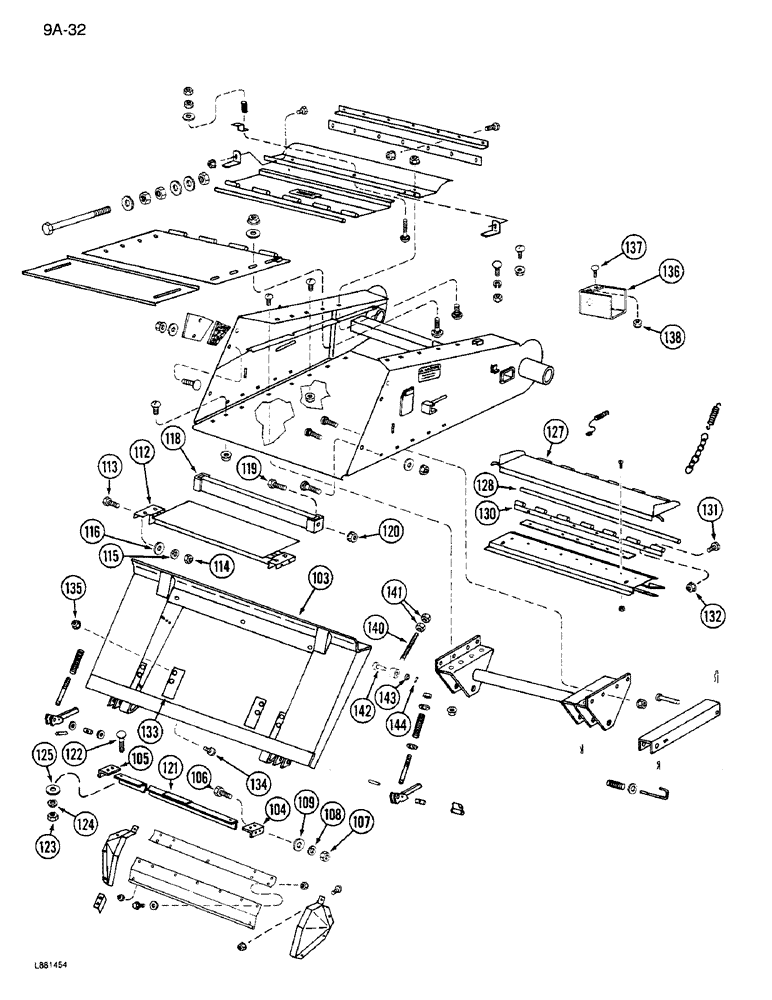

Запчасти Case IH 1640 (9A-32) - FEEDER, (CONT) (13) - FEEDER

103

1321690C3

ADAPTER

- feeder

1шт.

104

175913C1

ANGLE

- adapter, left

1шт.

105

175914C1

ANGLE

- adapter, right

1шт.

106

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

107

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

108

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

109

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

112

187187C2

SUPPORT ASSY.

SUPPORT - reinforcement (With rock trap)

1шт.

113

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

114

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

115

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

116

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

118

187192C1

SUPPORT ASSY.

SUPPORT - rear bottom (With rock trap)

1шт.

119

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

120

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

121

1319744C1

SUPPORT ASSY.

STIFFENER - support

1шт.

122

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

123

129-107

NUT,5/8"-11, G5

2шт.

124

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

125

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

127

193362C2

DOOR

- bottom feeder

1шт.

128

159012C1

ROD

- hinge, door

1шт.

130

193364C2

HINGE

- feed plate

1шт.

131

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

6шт.

132

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

133

181646C1

SUPPORT

FILLER - face wear (For rice)

2шт.

134

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

4шт.

135

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

136

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

137

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

137

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

138

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

138

403276R1

NUT

- speed, 5/16 inch

2шт.

140

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYE BOLT - adjusting

2шт.

141

129-184

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

4шт.

142

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch, Grade 1

2шт.

143

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

144

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.
