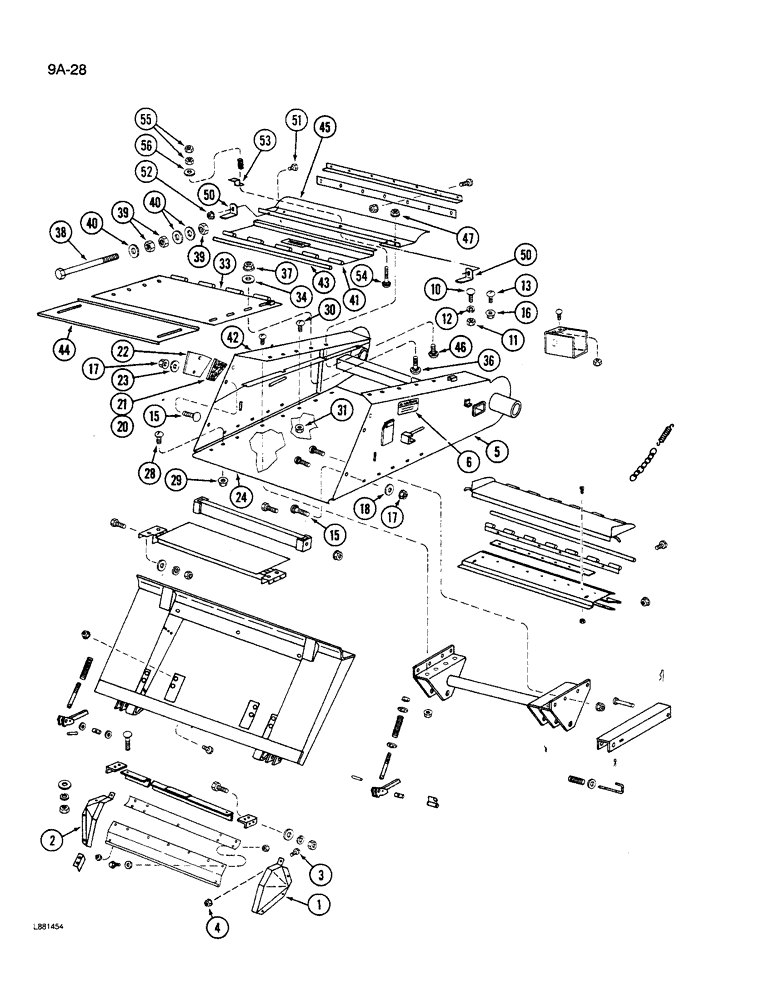

Запчасти Case IH 1640 (9A-28) - 184853C1 FEEDER (13) - FEEDER

1

184853C1

DEFLECTOR

- front, left

1шт.

2

184854C1

DEFLECTOR

- front, right

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

10шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

5

1321457C92

HOUSING ASSY.

HOUSING - feeder (47 inch feeder), Includes: Ref. 6

1шт.

5

1321458C92

HOUSING ASSY.

HOUSING - feeder (54-1/2 inch feeder), Includes: Ref. 6

1шт.

6

189922C3

DECAL

- warning

2шт.

10

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

3шт.

15

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch

6шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

17

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

6шт.

18

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

6шт.

20

1327752C1

FOAM INSULATION

- side, feeder, left

1шт.

21

1327753C1

FOAM INSULATION

- side, feeder, right

1шт.

22

1327737C2

PLATE

COVER - side, feeder

2шт.

23

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

24

1324576C1

PLATE

SHEET - bottom, feeder (47 inch feeder)

1шт.

24

185820C1

SHEET

- bottom, feeder (47 inch feeder perforated)

1шт.

24

1324578C1

PLATE

SHEET - bottom, feeder (54-1/2 inch feeder)

1шт.

24

1313970C1

PANEL

SHEET - bottom, feeder (54-1/2 inch feeder perforated)

1шт.

28

28661R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

29

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC (54-1/2 inch feeder)

4шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

8шт.

31

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

- hex flange, 3/8 inch NC

6шт.

33

1321431C2

SUPPORT

SHEET - hinge, feeder top (47 inch feeder)

1шт.

33

1321432C2

PROTECTION PLATE

SHEET - hinge, feeder top (54-1/2 inch feeder)

1шт.

34

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, 17/32 x 1-1/2 x 3/16 inch

8шт.

36

28661R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

37

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC

8шт.

38

1321395C1

BOLT,3/4" - 10 x 440mm

- adjusting, level

1шт.

39

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

40

25548R1

WASHER

- flat, hardened, 13/16 x 1-1/2 x 7/32 inch

3шт.

41

180555C91

DOOR ASSY.

DOOR - top, feeder

1шт.

42

179749C2

PRODUCT GRAPHIC

DECAL - warning, danger

1шт.

43

175906C1

ROD

- hinge, door

1шт.

44

1321638C1

COVER

- front, top

1шт.

45

197426C4

COVER

- top, feeder

1шт.

46

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

47

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC

2шт.

50

1322144C1

ANGLE

- stop, door

2шт.

51

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

52

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

53

184645C1

CLIP

- latch, door

1шт.

54

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

1шт.

55

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

56

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.
