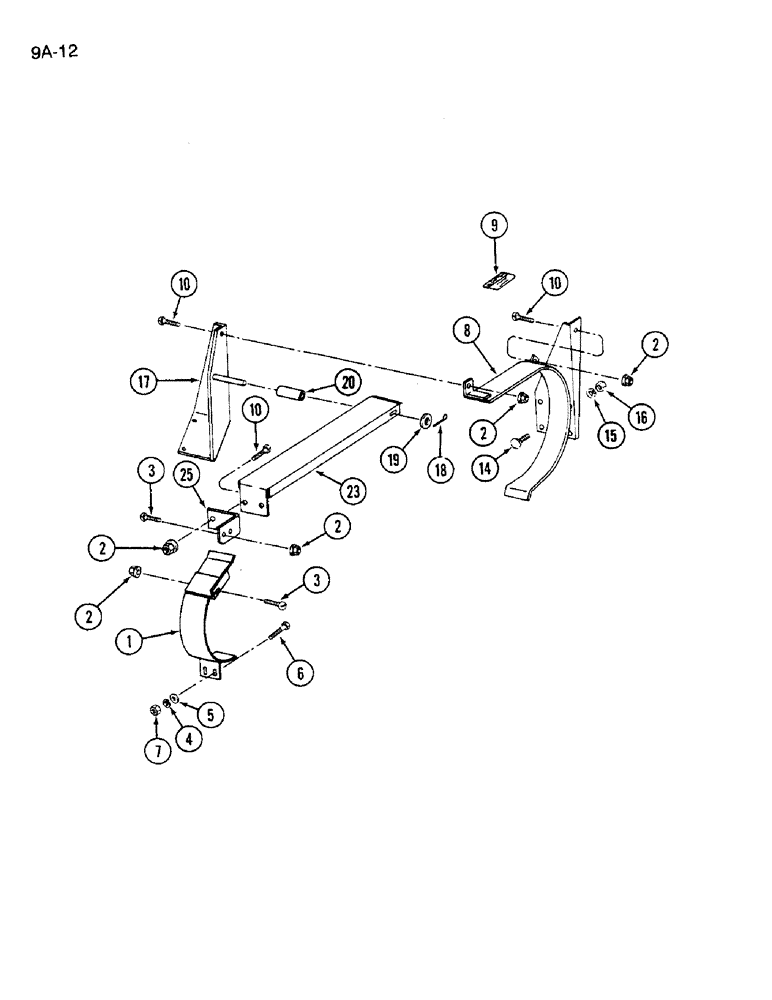

Запчасти Case IH 1640 (9A-12) - SEPARATOR DRIVE SHIELDS, FOR USE WITH DISCHARGE BEATER (13) - FEEDER

1

1308774C1

GUARD ASSY.

SHIELD ASSEMBLY - drive pulley

1шт.

2

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

7шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

3шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

495-21044

WASHER,3/8"

(flat, 3/32 x 1 x 1/16 inch) 3/8"

2шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

185395C91

SHIELD

ASSEMBLY - driven pulley, Includes: Ref. 9

1шт.

9

188200C1

PRODUCT GRAPHIC

DECAL - caution, engine compartment

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss, 3/8 NC x 3/4 inch

6шт.

13

181168C1

SUPPORT

- belt drive outer

1шт.

14

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

5шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

17

181169C1

SUPPORT ASSY.

SUPPORT - drive belt guide

1шт.

18

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

19

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - separator channel, 4-1/2 inch long (Order 526602R1, Serial Range: cut-length)

1шт.

526602R1

HOSE,12.7mm ID x 15240mm L

0.50" ID x 600.00"

1шт.

23

191961C2

SUPPORT

- drive belt

1шт.

25

193686C1

ANGLE

- belt guide channel support

1шт.
