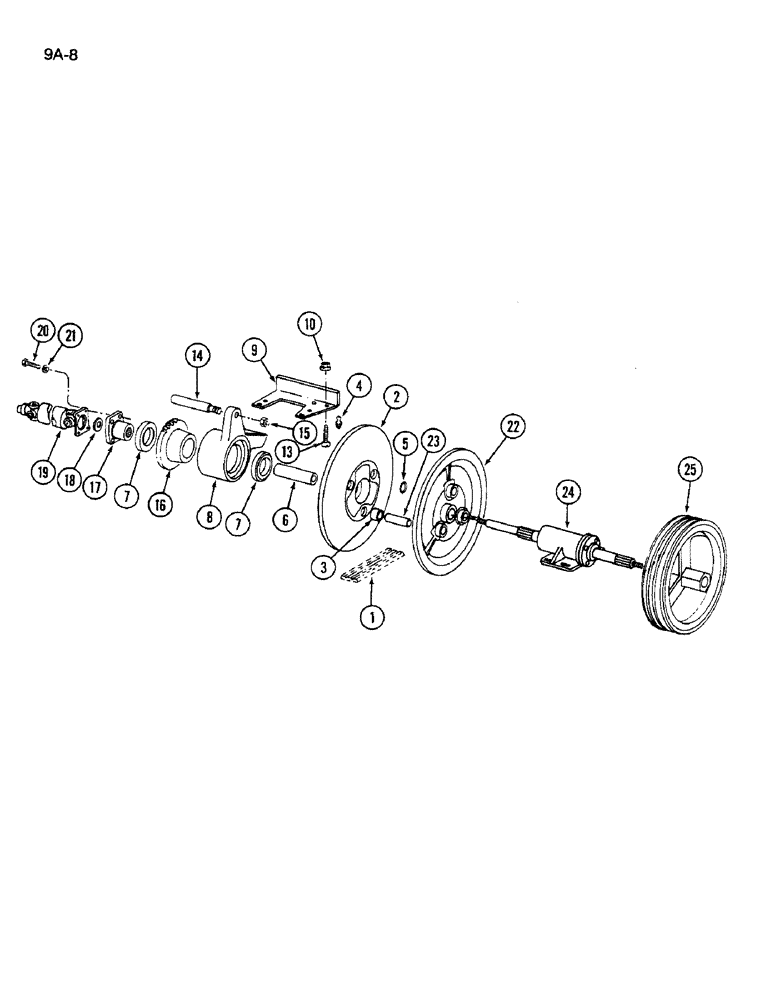

Запчасти Case IH 1640 (9A-08) - SEPARATOR JACKSHAFT DRIVE (13) - FEEDER

1

REF

INSTRUCTION

BELT - rotor variable drive (See Figure 9B-4)

1шт.

2

1330054C1

PULLEY

ASSEMBLY - rotor drive variable, Includes: Ref. 3, Serial Range: -JJC0024223

1шт.

2

193620C92

PULLEY ASSY.

PULLEY ASSEMBLY - rotor drive variable, Includes: Ref. 3, Start Serial: JJC0024223

1шт.

3

194665C1

BUSHING

- pulley

3шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, taper drive, 1/8 inch

1шт.

5

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

RING - rotor drive pulley

2шт.

6

188846C1

HUB

SLEEVE - rotor jackshaft, Serial Range: -JJC0024223

1шт.

6

191549C2

SLEEVE

- rotor jackshaft, Start Serial: JJC0024223

1шт.

7

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

BEARING - jackshaft thrust

2шт.

8

194394C1

HUB

FITTING - variable pulley female

1шт.

9

188309C2

SUPPORT

- variable pulley limit switch

1шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

2шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

2шт.

14

194496C2

LARGE PIN

STUD - variable stop

1шт.

15

129-108

NUT,3/4"-10, G5

- hex, 3/8 inch NC

1шт.

16

194464C2

SPROCKET

- variable pulley male, 25 tooth

1шт.

17

191542C2

SPLINED COUPLING,12T

COUPLING - universal joint

1шт.

18

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

- separator jackshaft

1шт.

19

191595C91

JOINT ASSY.

JOINT ASSEMBLY - universal drive, Includes journal and bearing kit, u-bolts, nuts and lock washers

1шт.

1300502C1

KIT

- journal and bearing

1шт.

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

2шт.

129-123

NUT,3/8"-24, G5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

20

26-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

- hex, 7/16 NC x 1-1/4 inch, Grade 8

4шт.

21

366863C1

LOCK WASHER

WASHER - rib lock, 7/16 inch

4шт.

22

188848C1

PULLEY

ASSEMBLY - rotor drive stationary, Serial Range: -JJC0024223

1шт.

22

193622C92

PULLEY ASSY.

PULLEY ASSEMBLY - rotor drive stationary, Includes: Ref. 23, Start Serial: JJC0024223

1шт.

23

191544C2

PIN,28.48mm OD x 127mm L

- pulley

3шт.

24

REF

INSTRUCTION

BLOCK ASSEMBLY - jackshaft bearing (See Figure 9A-16)

1шт.

25

REF

INSTRUCTION

PULLEY - separator jackshaft driven (See Figure 9A-16)

1шт.
