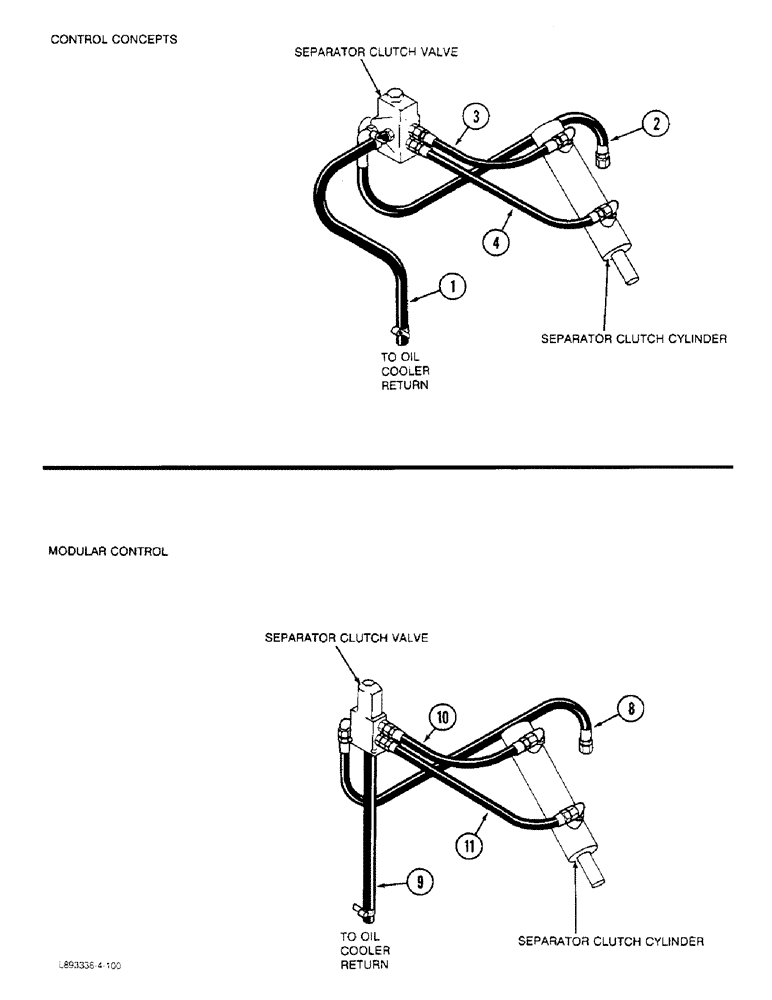

(1-24) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS

Запчасти Case IH 1640 (1-24) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (00) - PICTORIAL INDEX

Схема запчастей Case IH 1640 - (1-24) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (00) - PICTORIAL INDEX
3
1
4
8
11
10
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Separator Clutch Return Hose, pqage 8-65

1шт.

2

Lower Separator Clutch Hose, Page 8-65

1шт.

3

Separator Clutch Cylinder Hose, Page 8-65

1шт.

4

Separator Clutch Cylinder Hose, Page 8-65

1шт.

8

Lower Separator Clutch Hose, Page 8-67, modular control

1шт.

9

Separator Clutch Return Hose, Page 8-67, modular control

1шт.

10

Separator Clutch Cylinder Hose, Page 8-67, modular control

1шт.

11

Separator Clutch Cylinder Hose, Page 8-67, modular control

1шт.
