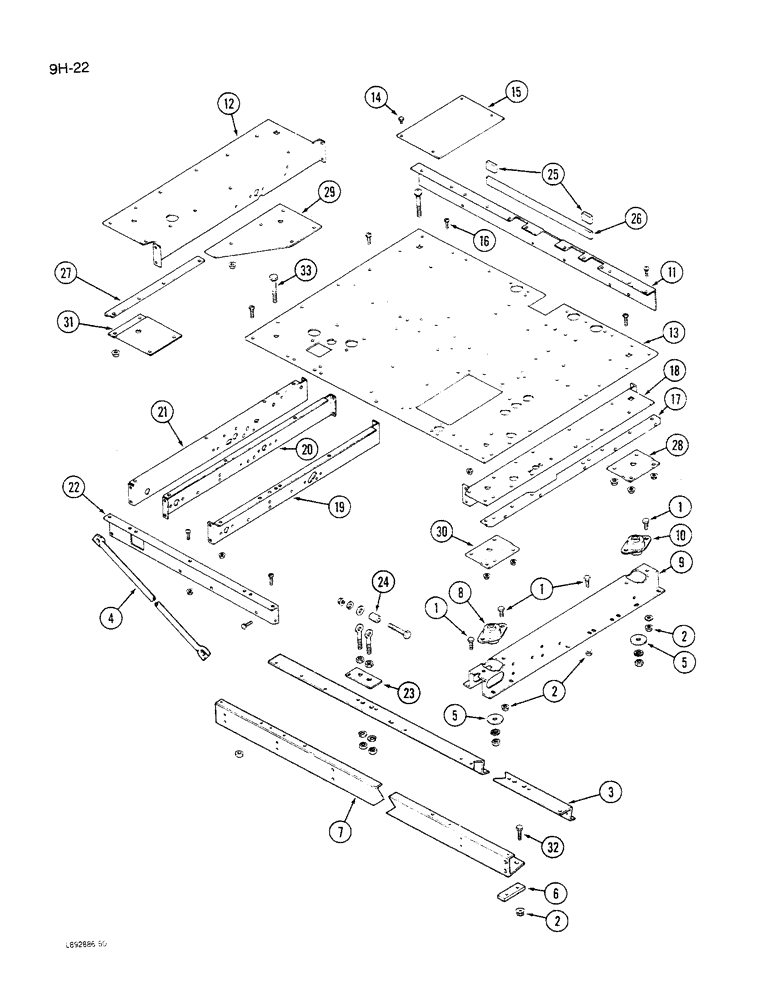

Запчасти Case IH 1640 (9H-22) - OPERATORS PLATFORM (12) - CHASSIS

1

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

2

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

1шт.

3

193021C6

SUPPORT

- operators platform, front

1шт.

4

187645C2

ROD

- operators platform extension

1шт.

5

196591C1

WASHER

- isolation mount

4шт.

6

195715C1

BAR

- rear mounting channel, 1/2 inch

2шт.

6

193428C1

BAR

- rear mounting channel, 5/8 inch

2шт.

7

193022C2

SUPPORT

- operators platform, rear

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR - rear vibration

2шт.

9

195507C6

SUPPORT

- operators platform, side

2шт.

10

117722C4

INSULATOR

- front vibration

2шт.

10

117722C4GV

INSULATOR

- front vibration

2шт.

11

1327564C2

SUPPORT

- operators platform, front

1шт.

12

195520C3

SUPPORT

- operators platform, left

1шт.

13

1321937C3

PLATE

- operators

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

BOLT - hex head tapping, 1/4 x 1/2 inch

4шт.

15

193029C2

PLATE

- brake access rear

1шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

11шт.

17

196969C4

SUPPORT

- platform stiffener, right side

1шт.

18

195518C8

SUPPORT

- operators platform, right

1шт.

19

195519C5

SUPPORT

- operators platform, right center

1шт.

20

195521C4

SUPPORT

- operators platform, center

1шт.

21

195557C7

SUPPORT

- operators platform, left center

1шт.

22

195516C3

SUPPORT

- operators platform, rear

1шт.

23

196592C2

BAR

- platform spacer

2шт.

24

591070R1

SPACER,3/4" Pipe x 1 7/16"

- operators platform, front

2шт.

25

NSS

NOT SOLD SEPARAT

STRIP - cab sill to front support seal, 2 inch (Order 187885C1, Serial Range: cut-length)

2шт.

26

187885C1

SEALING STRIP

STRIP - cab sill to front support seal, 26 inch (Order 187885C1, Serial Range: cut-length)

1шт.

27

183680C1

ANGLE

- platform stiffener, left

1шт.

28

183668C2

PLATE

- platform, right front

1шт.

29

183669C2

PLATE

- platform, left front

1шт.

30

183678C1

PLATE

- platform, right rear

1шт.

31

183679C1

PLATE

- platform, left rear

1шт.
