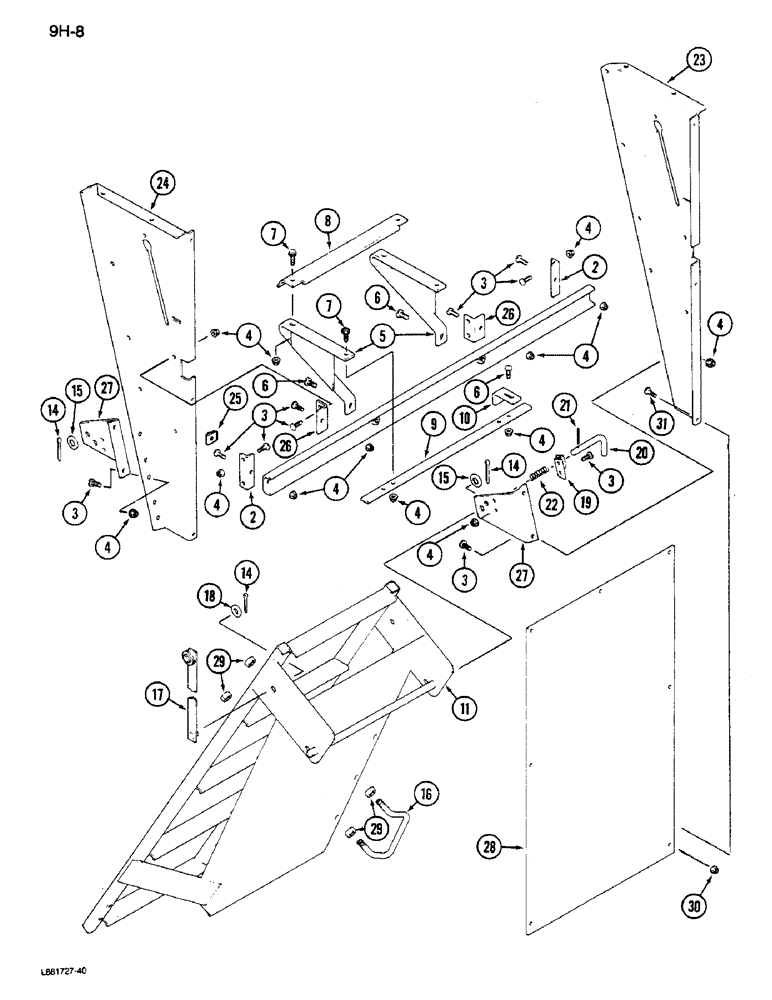

Запчасти Case IH 1640 (9H-08) - SERVICE LADDER (12) - CHASSIS

1

185399C2

CHANNEL

- ladder upper support

1шт.

2

194311C1

ANGLE

- ladder upper support

2шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

24шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

29шт.

5

1321703C1

BRACKET

STEP - upper ladder

2шт.

6

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

3шт.

7

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

8

1327607C1

PLATE

STEP - upper ladder angle

1шт.

9

1319722C1

BAR

- upper step support

1шт.

10

1321975C1

BRACKET

BAR - ladder stop

1шт.

11

1319766C91

LADDER

ASSEMBLY - rear service, with decals

1шт.

14

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), 3/16" x 3/4"

4шт.

15

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

6шт.

16

1329715C1

HANDLE

- ladder

1шт.

17

1321698C1

LINK

- ladder slip

1шт.

18

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

19

1319739C1

BRACKET

- ladder pin

1шт.

20

1319740C1

PIN

- ladder support

1шт.

21

19371R1

PIN,1/8" x 3/4", Coiled

- slotted spring, 1/8 x 13/16 inch

1шт.

22

540815R1

SPRING

- ladder support pin

1шт.

23

185404C3

PLATE

BRACE - ladder, left

1шт.

24

185405C3

PLATE

BRACE - ladder, right

1шт.

25

488837C1

SPRING NUT

- speed, 5/16 inch

4шт.

26

1327997C1

ANGLE

- upper step channel

2шт.

27

1319738C1

BRACKET

- ladder pivot

2шт.

28

186970C2

PLATE

SUPPORT - ladder front opening

1шт.

29

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

30

92068R1

NUT

- ladder front plate

6шт.

31

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

6шт.
