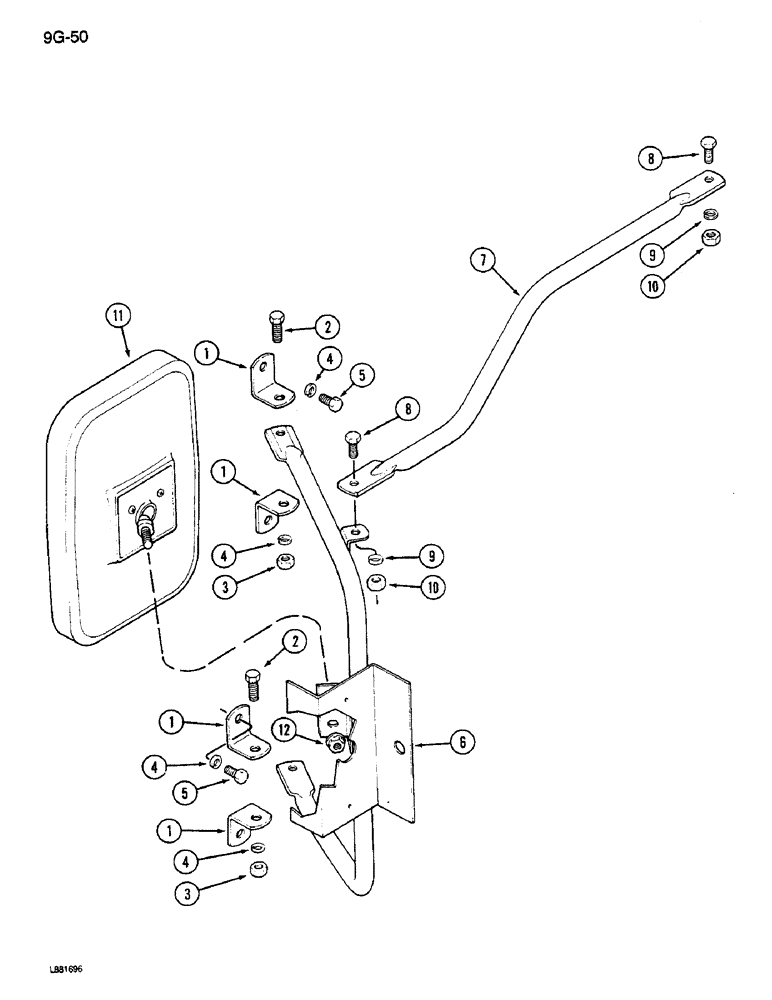

Запчасти Case IH 1640 (9G-50) - REAR VIEW MIRROR, RIGHT (10) - CAB & AIR CONDITIONING

1

1281917C1

ANGLE

- mirror

4шт.

2

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

2шт.

3

25520R1

NUT,5/16"-18, G8

- hex, 5/16 inch, Grade 8

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 5/8 inch

4шт.

6

1281914C1

TUBE,438.5, 246.7 mm Length

ASSEMBLY - mirror, right

1шт.

7

1281916C2

TUBE

- brace, right

1шт.

8

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

9

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

1283403C1

MIRROR

- rear view, right

1шт.

12

3164622R1

LOCK NUT

- flange lock, M10

1шт.
