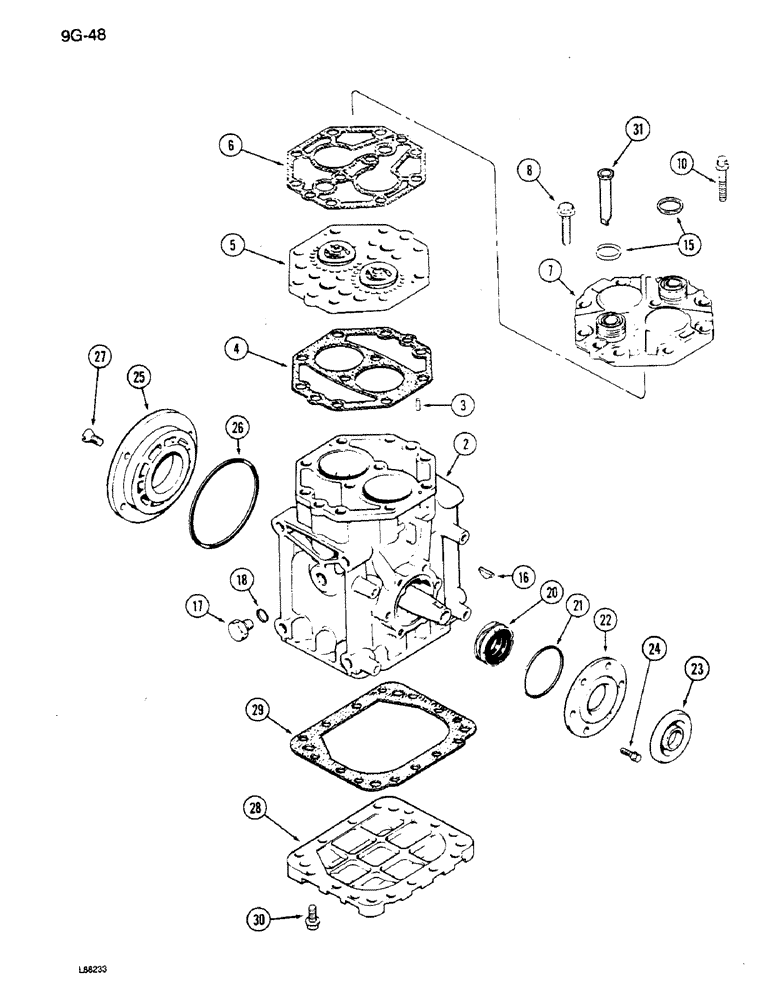

Запчасти Case IH 1640 (9G-48) - COMPRESSOR (10) - CAB & AIR CONDITIONING

1255750C91

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, Includes: Ref. 2 - 31

1шт.

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor Assy

1шт.

1924009C1

CORE-A/C COMPRESSOR

Return Number, Air Compressor Assy

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE - compressor (Order 1255750C91)

1шт.

3

21247R1

DOWEL,1/8" x 3/4"

PIN - dowel, 1/8 x 3/4 inch

1шт.

394430C91

KIT

KIT - valve plate with gaskets, Includes: Ref. 4 - 6

1шт.

4

431761C1

CYLINDER HEAD GASKET

GASKET - valve, Serial Range: plate-crankcase

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve (Order 394430C91)

1шт.

6

431756C1

CYLINDER HEAD GASKET

GASKET - cylinder head to valve plate

1шт.

478712C91

PACKAGE

KIT - cylinder head with gaskets (Includes Ref. 4, 6 and 7)

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD - (Order 478712C91)

1шт.

8

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

BOLT - 5/16 NC x 1-3/8 inch

8шт.

10

27690R1

12 PT SCREW,Flg, 5/16"-18 x 1 1/2"

BOLT - 5/16 NC x 1-1/2 inch

2шт.

15

118469C1

GASKET

GASKET - service valve (Not used this application)

2шт.

16

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

17

86982693

PLUG

- 3/8-24

2шт.

18

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL - o-ring oil plug

2шт.

592263C91

SEAL KIT

SEAL KIT - shaft front, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankcase

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - plate

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - retaining, seal

1шт.

23

NSS

NOT SOLD SEPARAT

CAP - dust

1шт.

24

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- No. 10 x 1/2 inch

6шт.

25

431757C1

HOUSING

COVER - rear, crankcase housing

1шт.

26

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL - o-ring

1шт.

27

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

SCREW, Slotted Flat Hd, 1/4"-20 x 5/8"

4шт.

28

431755C1

PLATE

SPARE PART PLATE - base

1шт.

29

431760C2

GASKET

GASKET - base

1шт.

30

21024R1

SCREW

BOLT - 1/4 NC x 5/8 inch

14шт.

31

118210C1

FILTER SCREEN

SCREEN - filter, suction

1шт.
