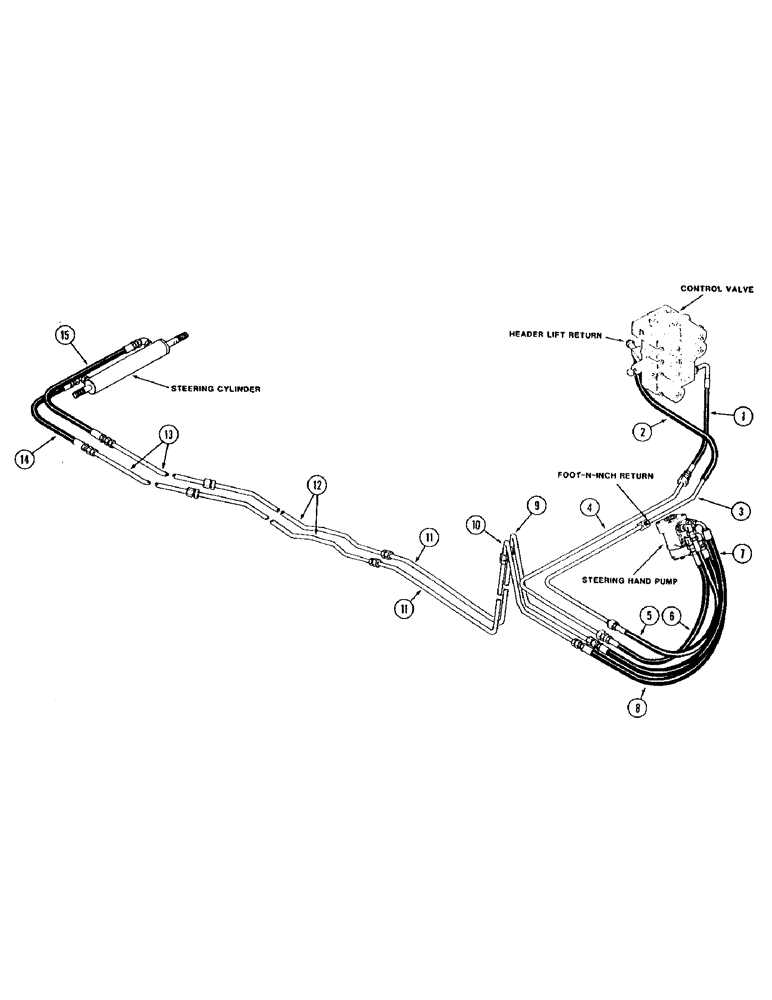

Запчасти Case IH 1640 (1-20) - PICTORIAL INDEX, STEERING SYSTEM (00) - PICTORIAL INDEX
9
8
1
12
14
15
3
2
6
11
13
10
5
4
7
11
№
Артикул
Название
Примечание
Количество
1
Steering Pressure Hose, Page 5-5
1шт.
2
Steering Return Hose, Page 5-5
1шт.
3
Steering Return Tube, Page 5-5
1шт.
4
Steering Pressure Tube, Page 5-5
1шт.
5
Steering Hand Pump Return Hose, Page 5-5
1шт.
6
Steering Hand Pump Pressure Hose, Page 5-5
1шт.
7
Left Steering Hand Pump Hose, Page 5-7
1шт.
8
Right Steering Hand Pump Hose, Page 5-7
1шт.
9
Steering, Forward, Upper Inside Tube, Page 5-7
1шт.
10
Steering, Forward, Upper Inside Tube, Page 5-7
1шт.
11
Steering, Intermediate, Forward Tube, Page 5-7
1шт.
12
Steering, Intermediate, Rear Tube, Page 5-7
1шт.
13
Steering, Rear Tube, Page 5-7
1шт.
14
Cylinder, Lower Hose, Page 5-7
1шт.
15
Cylinder, Upper Hose, Page 5-7
1шт.
Выбрано товаров: 15
