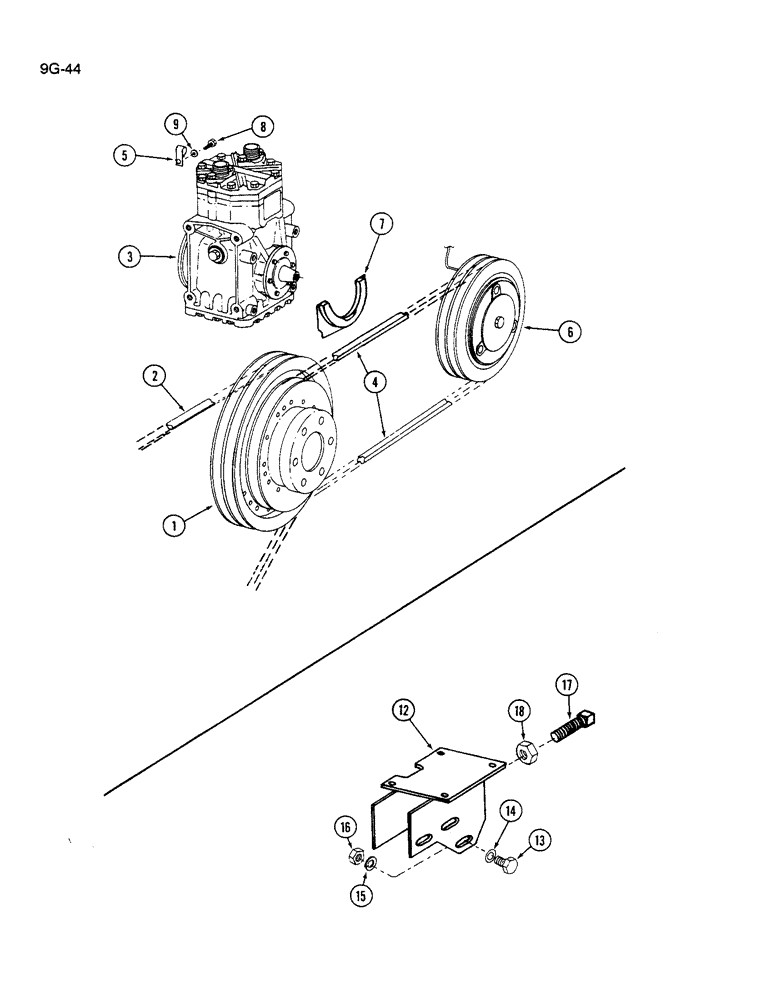

Запчасти Case IH 1640 (9G-44) - AIR CONDITONING COMPRESSOR PULLEYS, CLUTCH AND BELTS (10) - CAB & AIR CONDITIONING

1

691562C1

PULLEY

PULLEY - fan and water pump (Three belt grooves)

1шт.

2

537072R91

SET OF BELTS

(Matched), Drive, Fan

1шт.

3

1255750C91

COMPRESSOR

COMPRESSOR - air conditioning (See Figure 9G-48)

1шт.

3

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor Assy

1шт.

3

1924009C1

CORE-A/C COMPRESSOR

Return Number, Air Compressor Assy

1шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 x 1-1/2 inch

4шт.

4

164550R2

V-BELT,42.50" L

Drive, Compressor

1шт.

5

362667R1

CLIP

CLIP - wire harness

1шт.

6

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor (See Figure 9G-46), Includes: Ref. 7

1шт.

7

245983C1

AIR CONDITIONER

WICK - compressor

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

9

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

12

143140C1

BRACKET

SUPPORT - mounting, compressor, air conditioner

1шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - 3/8 x 3-1/4 inch, air conditioner compressor mounting

3шт.

14

25709R1

WASHER

WASHER - hardened, 13/32 x 13/16 x 5/64 inch, air conditioner compressor mounting

3шт.

15

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , air conditioner compressor mounting 3/8"

3шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Air conditioner compressor mounting 3/8"-16, G5

3шт.

17

26257R1

SET SCREW

SCREW - square head set, 3/8 x 3 inch, air conditioner compressor mounting

1шт.

18

25932R1

JAM NUT,Jam, 3/8"-16, G5

NUT - hex jam, 3/8 inch, air conditioner compressor mounting

1шт.
