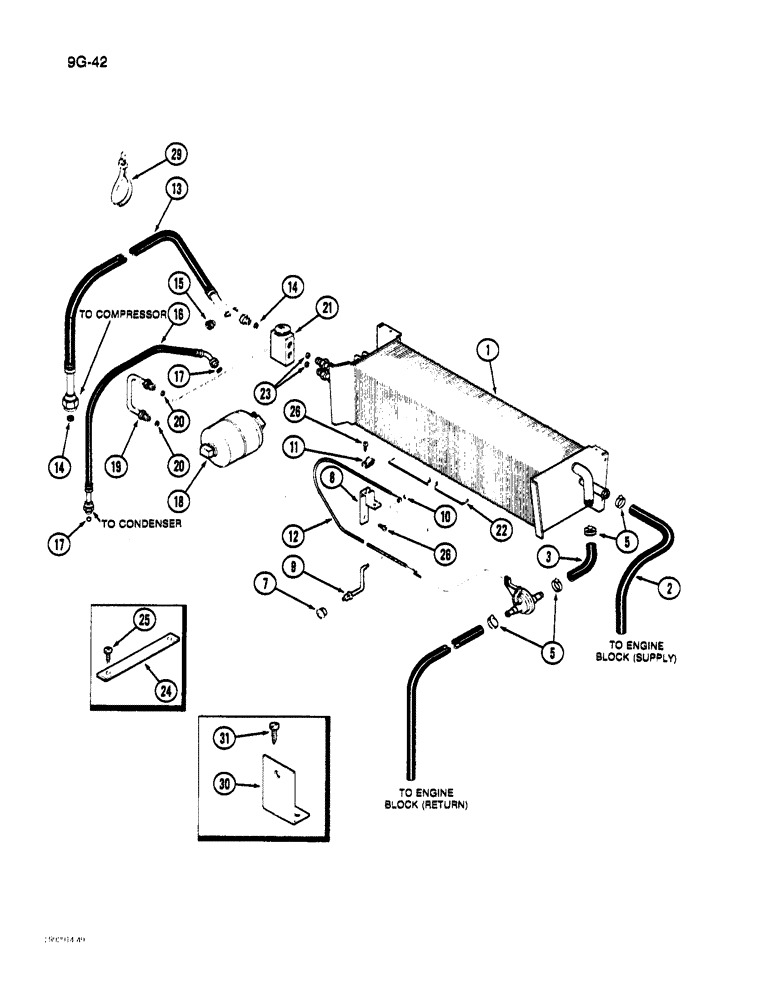

Запчасти Case IH 1640 (9G-42) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

1

REF

INSTRUCTION

CORE - heater and evaporator (See Figure 9G-34)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (Order 1255859C1, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve (return) 5 inch (Order 117724C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction (return) 115 inch (Order 117724C1, Serial Range: cut-length)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, No. 10, Type F

4шт.

6

1331087C1

HEATER VALVE

VALVE - heater control (Replaces 3234102R92)

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1283445C2

BRACKET

SUPPORT - cable, heater valve control

1шт.

9

1281809C1

ARM

- heater control

1шт.

10

25408R1

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, #X21, .185" Dia, E-Type

1шт.

11

1283334C1

CLIP

- mounting, heater cable

1шт.

12

1343953C1

CABLE

- control, heater valve (Replaces 1276220C3)

1шт.

13

1276164C1

HOSE

- evaporator discharge, Includes: Ref. 14 and 15

1шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

1шт.

16

1276163C2

HOSE

- drier to cab, Includes: Ref. 17

1шт.

17

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - (See Figure 9G-34)

1шт.

19

1250438C1

TUBE ASSY.

TUBE - receiver-drier, Includes: Ref. 20

1шт.

20

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

21

118321C1

VALVE

- expansion (Use with 135777C2 core)

1шт.

21

118321C1GV

VALVE

- expansion (Use with 135777C2 core)

1шт.

21

98370C2

VALVE

- expansion (Use with 1974632C1 core)

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch (Order 118468C1, Serial Range: cut-length)

1шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - No. 10-16 x 3/8 inch

3шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

30

98158C1

BRACKET

- heater valve support

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.
