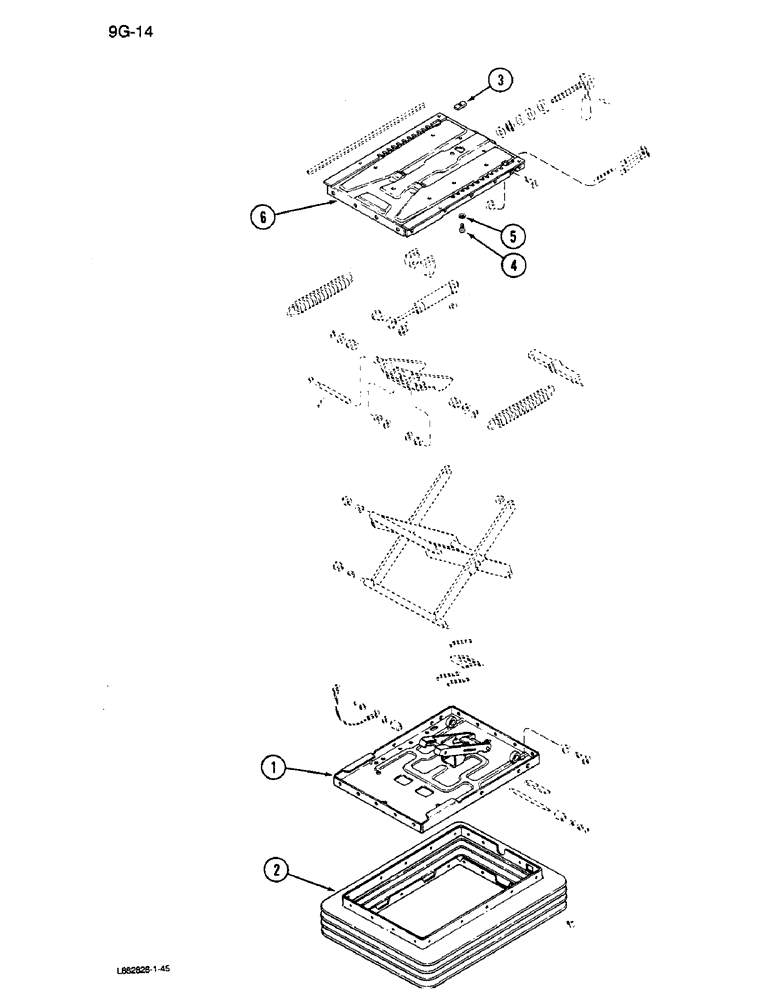

Запчасти Case IH 1640 (9G-14) - SEAT ASSEMBLY, BOSTROM (10) - CAB & AIR CONDITIONING

91789C91

SEAT

ASSEMBLY - operator, continued, Includes: Ref. 1 - 6

1шт.

1954465C1

KIT

SERVICE KIT - suspension, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SUSPENSION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

3

NSS

NOT SOLD SEPARAT

STOP - forward

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - stop retaining, M5 x 10 mm

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock, 5 mm

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDER - seat

2шт.

Part of Top Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

1954469C1

KIT

SERVICE KIT - top, seat, Includes: Ref. 6, and Ref. on Figures 9G-12 and 14

1шт.

1954471C1

KIT

SERVICE KIT - miscellaneous, Includes: Ref. 6, and Ref. on Figures 9G-12, 14, and 16)

1шт.
