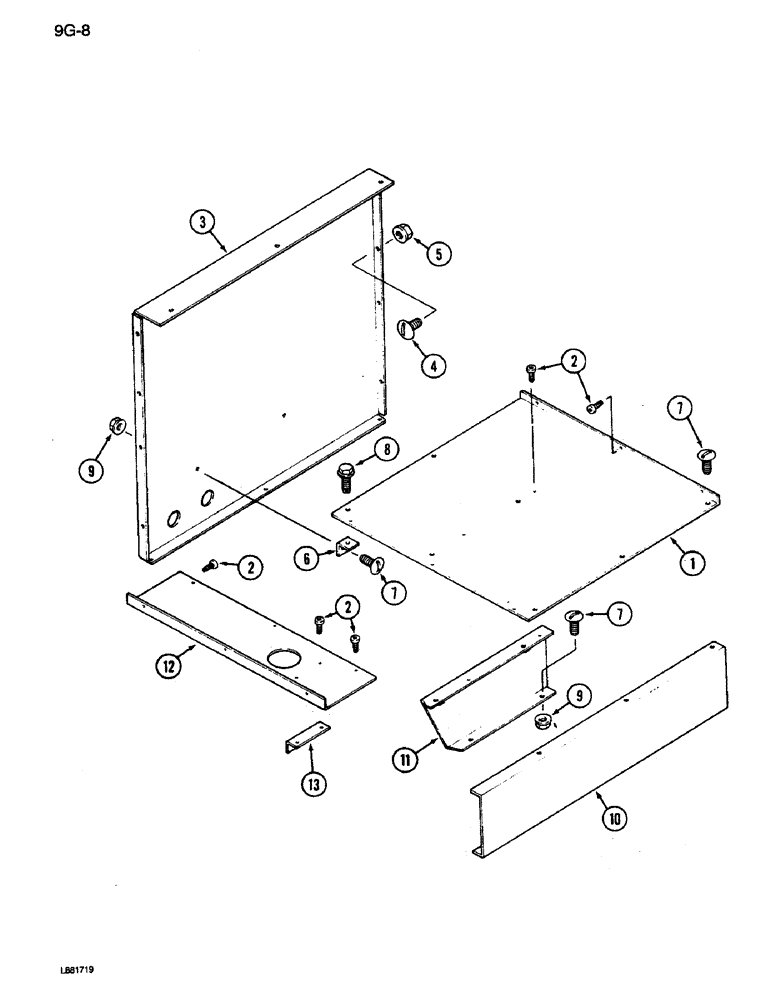

Запчасти Case IH 1640 (9G-08) - OPERATORS SEAT SUPPORTS (10) - CAB & AIR CONDITIONING

1

91701C1

PLATE

- base

1шт.

2

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head tapping, No. 10-24 x 1/2 inch

15шт.

3

91757C2

PANEL ASSY.

PANEL - center rear

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slottee truss head, 3/8 NC x 3/4 inch

7шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

7шт.

6

91708C1

BRACKET

ANGLE - rear support

2шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

15шт.

8

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - hex washer tapping, 5/16 x 1 inch

2шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

14шт.

10

91693C1

CHANNEL

ASSEMBLY - front

1шт.

11

91695C1

CHANNEL

ASSEMBLY - center

1шт.

12

91702C1

COVER

- reservoir bracket

1шт.

13

91703C2

BRACKET

ANGLE - reservoir bracket

1шт.
