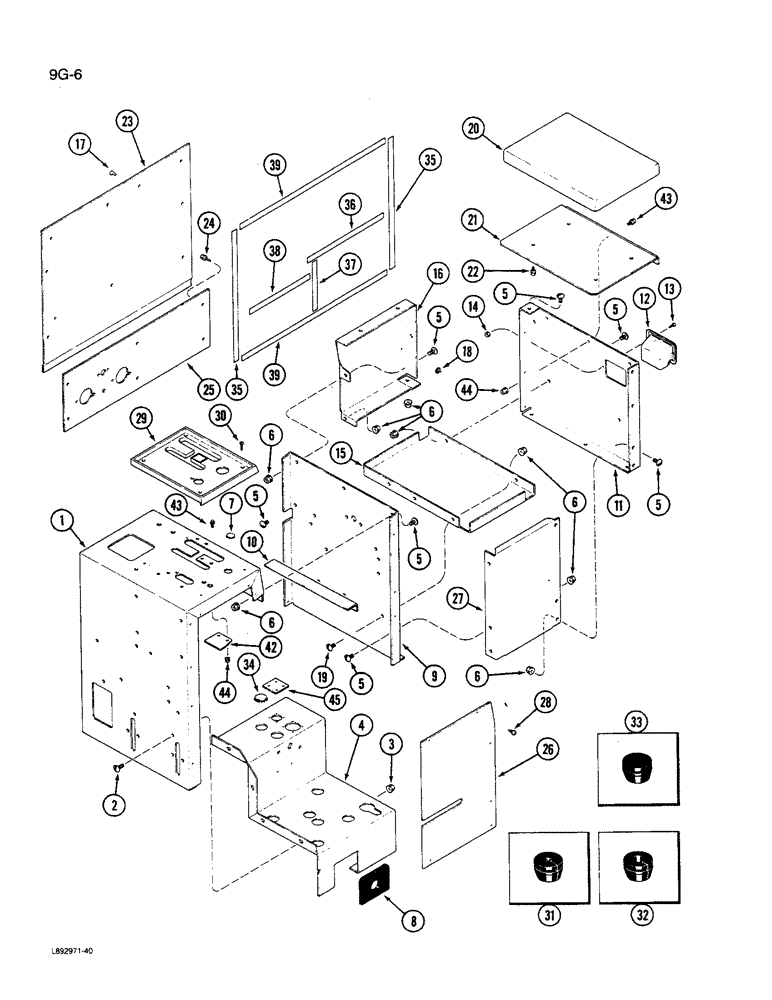

Запчасти Case IH 1640 (9G-06) - LEFT CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C8

COVER

SUPPORT - left console rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

4

1321719C2

SUPPORT

- left console lower

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

1шт.

7

198820C1

GROMMET

PLUG - lower console support

8шт.

8

1327577C2

GROMMET

SEAL - harness opening (Insulator)

1шт.

9

1324177C2

PLATE

SUPPORT - manual box rear

1шт.

10

1329877C1

ANGLE

- cover support, rear (If equipped)

1шт.

11

1324178C2

PLATE

SUPPORT - manual box front

1шт.

12

A165449

ASH TRAY

TRAY - ash

1шт.

13

157070

SCREW,Cross Oval Hd, #10"-32 x 1/2"

- machine, No. 10-32 NF x 1/2 inch

2шт.

14

115999

NUT,#10-32

- No. 10-32 NF

2шт.

15

1324176C1

PLATE

SUPPORT - manual box bottom

1шт.

16

91878C2

SUPPORT

- manual box cover (left)

1шт.

17

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

2шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

2шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

3шт.

20

98129C1

PANEL

- trim (Grey)

1шт.

21

1329876C1

PLATE

COVER ASSEMBLY - manual box

1шт.

22

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- flange lock, 1/4 NC x 1/2 inch

4шт.

23

1327958C1

PLATE

- left console outer cover

1шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex washer head tapping, 1/4 x 1/2 inch

16шт.

25

1283280C2

SUPPORT

- left console connector panel

1шт.

26

91776C1

PLATE

- left console inner

1шт.

27

1324175C2

PLATE

SUPPORT - right side manual box

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recessed, No. 10 x 1/2 inch

7шт.

29

1285417C1

COVER

- left console

1шт.

30

27204R1

SELF-TAP SCREW

- oval head cross recessed, No. 10 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- 3/8 inch ID

1шт.

32

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

33

198820C1

GROMMET

- plug, lower console suppport

1шт.

34

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - 1-1/4 inch diameter

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - console cover, 18 inch (Order 195917C1, Serial Range: cut-length)

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - console cover, 12 inch (Order 195917C1, Serial Range: cut-length)

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - console cover, 7 inch (Order 195917C1, Serial Range: cut-length)

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - console cover, 9 inch (Order 195917C1, Serial Range: cut-length)

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - console cover, 23 inch (Order 195917C1, Serial Range: cut-length)

1шт.

42

195239C2

BAR

- H pattern filler plate

1шт.

43

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

2шт.

44

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

45

1330179C1

PLATE

- cover

1шт.
