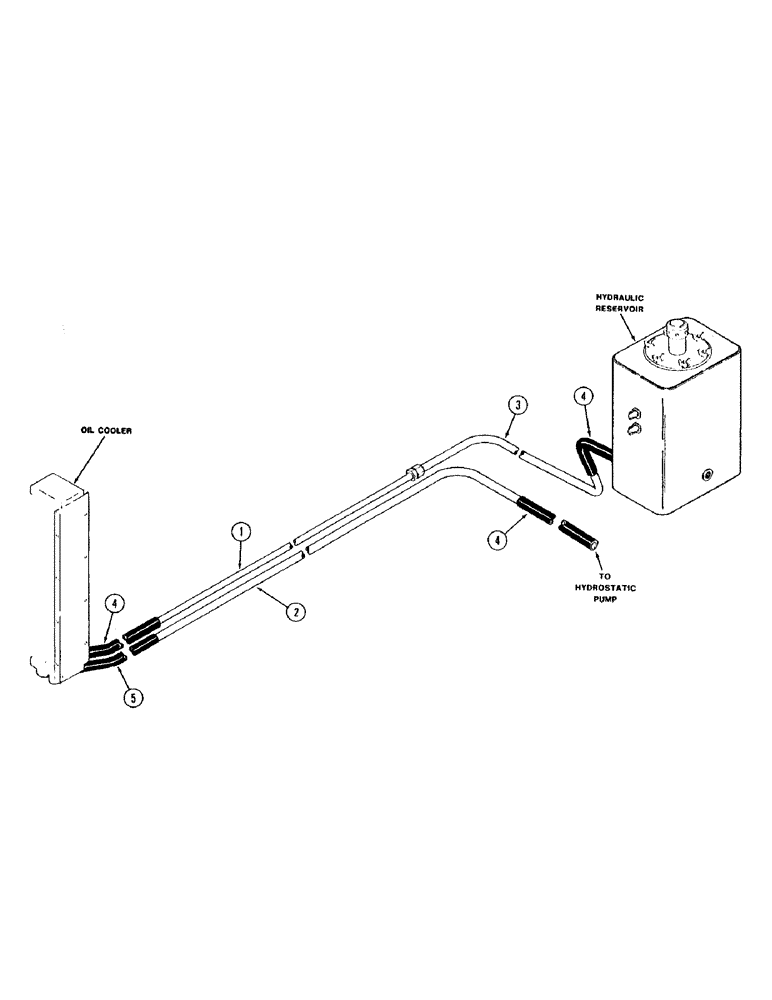

(1-16) - PICTORIAL INDEX, OIL COOLER SYSTEM

Запчасти Case IH 1640 (1-16) - PICTORIAL INDEX, OIL COOLER SYSTEM (00) - PICTORIAL INDEX

Схема запчастей Case IH 1640 - (1-16) - PICTORIAL INDEX, OIL COOLER SYSTEM (00) - PICTORIAL INDEX
2
5
4
4
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Reservoir to Oil Cooler Tube, Page 8-9

1шт.

2

Oil Cooler to Hydraulic Pump Tube, Page 8-9

1шт.

3

Reservoir to Oil Cooler Tube, Page 8-9

1шт.

4

Oil Cooler Hose, 3/4 inch ID, Page 8-9

1шт.

5

Oil Cooler Hose, 5/8 inch ID, Page 8-9

1шт.
