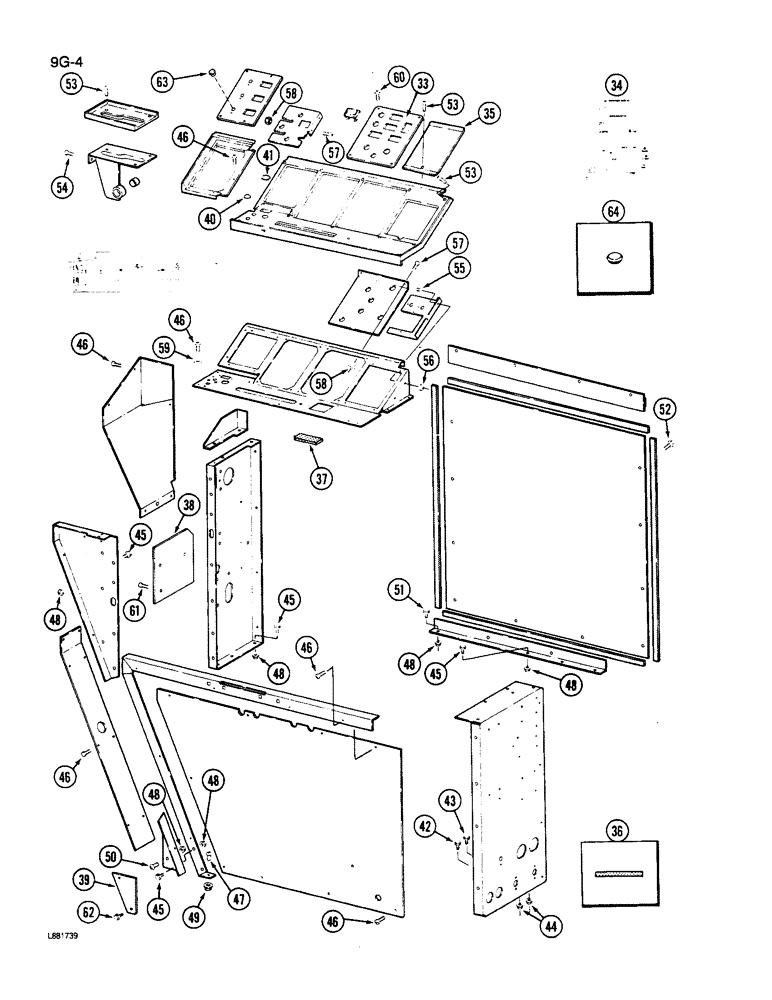

Запчасти Case IH 1640 (9G-04) - RIGHT CONSOLE, (CONT) (10) - CAB & AIR CONDITIONING

33

1276211C1

PANEL

- machine control

1шт.

34

1280167C2

DECAL

- control panel, English

1шт.

34

1957290C1

DECAL

- control panel, French

1шт.

34

1957291C1

DECAL

- control panel, German

1шт.

34

1957292C1

DECAL

- control panel, Spanish

1шт.

35

187573C1

COVER

- fuse panel

1шт.

36

195917C1

GASKET

SEAL - bulk stock

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - right console cover, 3 inch

2шт.

38

1327985C1

PLATE

- hole cover, right front

1шт.

39

91705C1

PLATE

BAR - right console, lower

1шт.

40

353-402

PLUG,Dome, .375" hole, Nylon

- hole, 1/2 diameter

2шт.

41

183617C1

PLUG

- right console

1шт.

42

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange, 3/8 NC x 1 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

45

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

11шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head, No. 10 x 1/2 inch

34шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

14шт.

49

1254276C1

PUSH-ON NUT

- pal fastener

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - truss head, 5/16 NC x 3/4 inch

2шт.

51

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

52

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex tapping, 1/4 x 1/2 inch

10шт.

53

27204R1

SELF-TAP SCREW

- oval head, No. 10-16 x 3/4 inch

15шт.

54

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head tapping, 1/4 x 1/2 inch

4шт.

55

937875R1

SCREW,Serr, 1/4" - 20

BOLT - truss head, 1/4-20 x 3/4 inch

3шт.

56

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

3шт.

57

26667R1

SCREW

- pan head, No. 10-24 x 3/4 inch

4шт.

58

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24

4шт.

59

24853R1

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

WASHER - flat, 11/32 x 1 x 7/64 inch

3шт.

60

1270762C1

SELF-TAP SCREW

- pan head, No. 10-16 x 3/4 inch

4шт.

61

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

3шт.

62

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - hex washer head, 5/16 NC x 1 inch

1шт.

63

353-403

PLUG,Dome, .437" hole, Nylon

3шт.

64

353-254

PUSH BUTTON,1 1/4"

PLUG - button, 1-19/64 inch (Combine without grain tank level sensor)

1шт.
